Sound Devices CL-8
External controller for 788T and 788T-SSD recorders. Designed for over the shoulder or cart applications. Provides control of pre- or post-fader gain, input routing, high-pass filter, input limiters, polarity reversal, input solo, and slate mic. Connects and powered from 788T from USB.
Main Benefits
- Aluminum & Steel Construction
- Bus-Powered
- 8 Faders
- Tactile Buttons
- LED Indicators
- USB Connectivity
Description

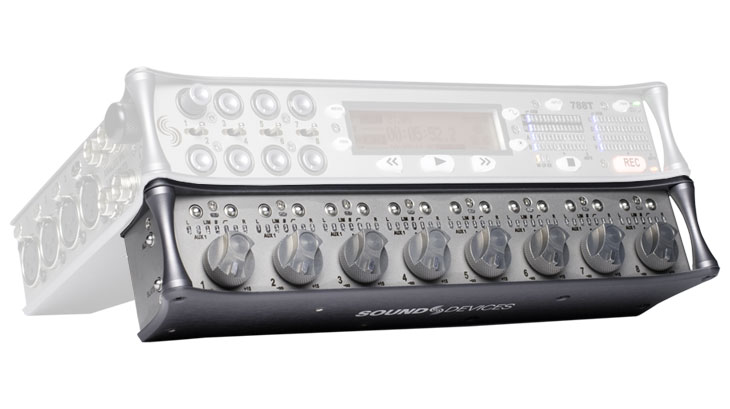

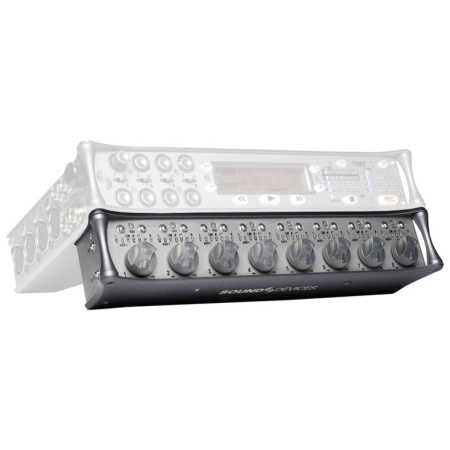

The CL-8 from Sound Devices is a powerful mixing control unit designed for use with the 788T digital audio recorder. The CL-8 can be mounted to the 788T or used remotely to provide in-depth mixer control.
The unit features 8 rotary faders for controlling input levels. Tactile buttons provide control over each input's high-pass filter, limiter, polarity, and muting. Shortcuts are provided for routing the inputs to the left/right Mix tracks and the Aux tracks. LED indicators display signal presence and peak, as well as left, right, aux, limiter, high-pass, and polarity status.
In addition to control features, the CL-8 also provides additional record tracks to the 788T, which can be monitored in headphones, as well as recorded and routed to the 788T outputs. The unit is bus-powered and connects to the 788T via a USB connection. A USB pass-thru port is provided for connecting a keyboard.
Tech Specs
| Power |
Bus-Powered via USB |
| Dimensions (HxWxD) |
1.75 x 10.2 x 2.25" (45 x 259 x 57mm) |
| Weight |
21.5 oz (0.6kg) |
