ERX3TCD IFB audio receiver with timecode output and delay

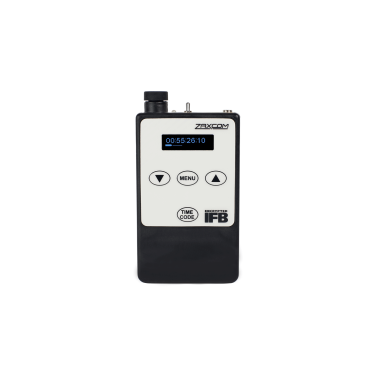

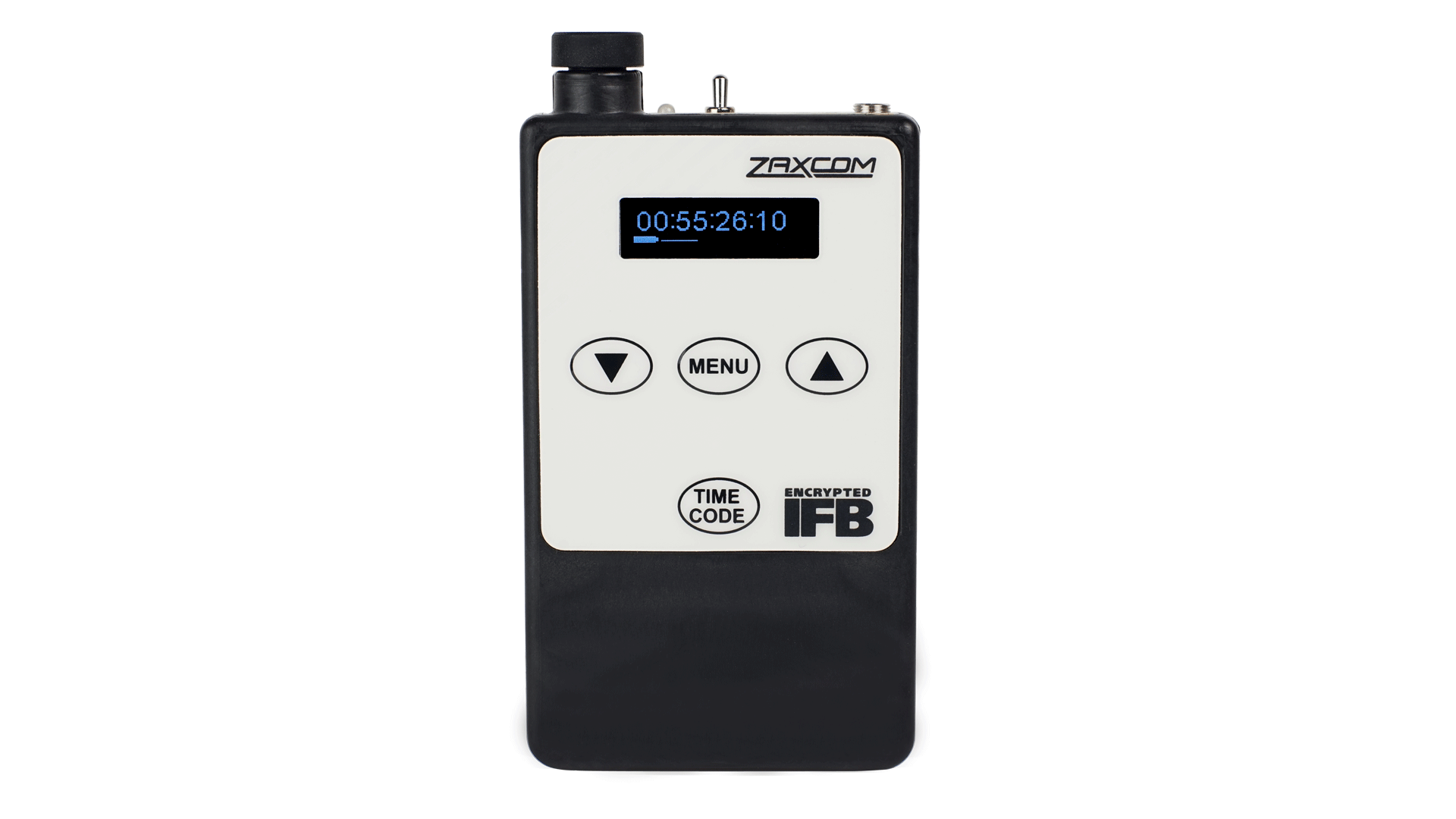

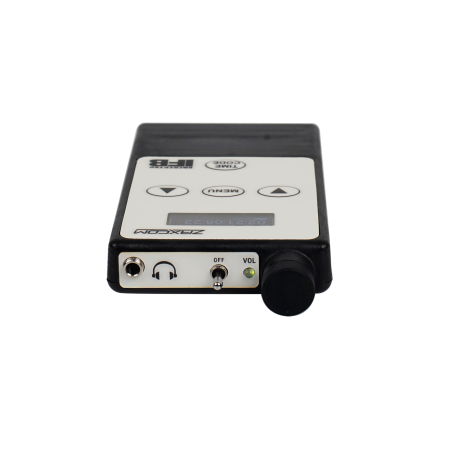

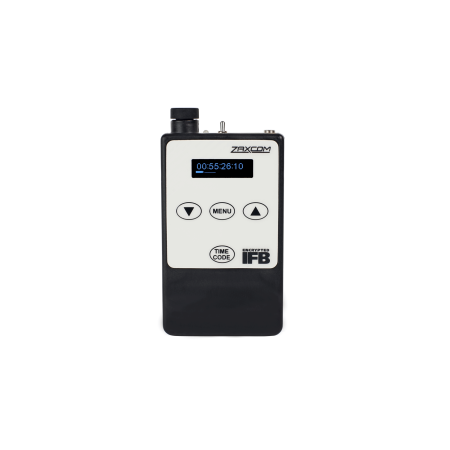

The ERX3TCD features an OLED display, locking headphone connector a practically unbreakable rubber volume knob. It receives high quality encrypted digital audio and timecode from any ZaxNet source. The OLED display shows timecode, user bits, current Scene and Take metadata in real time with a hold button to freeze the display.
Description
An adjustable delay can be set to match audio to monitors with various video lag due to video signal processing.
Mounted on a camera or slate the ERX3TCD can provide frame accurate timecode with no drift since it is constantly receiving and updating its timecode from the source.
There is also a 1kHz notch filter to eliminate the transmission of tone that is sometimes sent from the mixing console. The notch filter frequency is adjustable and using it won’t affect the quality of your IFB audio.
Tech Specs
- Receiver
- RF Frequency: 2.403 GHz to 2.475 GHz
- RF Bandwidth: 1MHz
- Frequency Spacing: 2MHz
- System channels: 36
- Timecode
- Timecode output: SMPTE
- Timecode output level: .01VPP to 3VPP
- Physical
- Display: OLED
- Size: 4.1″ x 2.4″ x .6″
- Weight: 3oz
- Battery: 2 x AA
- Battery life: approximately 12 hours
- Output
- Audio output impedance: 16 ohm
- Audio output level max: +10dB
- Audio output format: 2 channel mono
- Connector: 1/4" (3.5mm) locking
