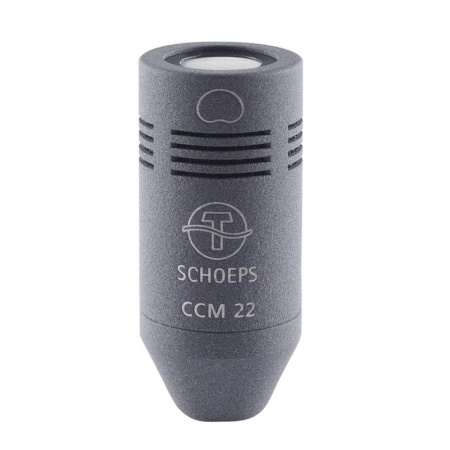

Schoeps CCM 22 L Compact Microphone, open cardioid, incl. SGC, K5LU, wooden box
The CCM 22 has been developed for use as a spot microphone. It unites the strengths of the CCM 4 and CCM 21 microphones. Its directionality is only slightly less than that of the CCM 4 cardioid, while its sonic character is reminiscent of the CCM 21 wide cardioid. Its directivity is essentially constant throughout the frequency range. Its inherent low-frequency response is somewhat more pronounced than that of the cardioid, while proximity effect is somewhat less.
- new kind of directional pattern: “Open Cardioid”
- optimal combination of classic cardioid directionality (MK 4) with the sonic character of the wide cardioid (MK 21)
- directional pattern largely constant throughout the frequency range
- often preferred for spot miking and as a soloist’s microphone
Overview
The “Open Cardioid” directional pattern, occupying a point on the spectrum between the wide cardioid and classic cardioid patterns, was developed by SCHOEPS in 2008. The response is -5 dB at 90° and there is 16 dB suppression of rear-incident sound. It is in essence a variant cardioid which balances a very natural sound quality with a good degree of directionality.
The CCM 22 / the MK 22 is winner of the 2009 award in the category
Although our normal production tolerances are very close, we can deliver specially matched compact microphone pairs for a small extra charge.
Application
The years of experience which many recording engineers have had with the various types of SCHOEPS cardioid microphones have played a large role in the design process. The CCM 4 cardioid is often relied upon as a reference microphone, even in difficult recording situations; its sonic transparency and outstanding suppression of rear-incident sound make it a universal problem-solver. The CCM 21 wide cardioid offers an alternative when its lower directivity fits the recording situation, e.g. for the first desk of strings or for solo piano. This microphone type is prized for its sonic character (similar to that of a pure omnidirectional microphone) and its relative lack of proximity effect. Then the wish arose for a “middle way” which would combine these characteristics into a single capsule. The result is the CCM 22 Open Cardioid.
Specifications
| All CCMs |
| Current consumption with 12 V |
8 mA |
| Current consumption with 48 V |
4 mA |
| Impedance |
90 Ω |
| Minimum recommended load impedance |
600 Ω |
| Low-cut frequency |
20 Hz |
| Length (L version) |
without connector: 46 – 58 mm |
| Length (U version) |
46 – 58 mm |
| Diameter |
20 mm |
| Weight (U-version) |
33 g |
| Weight (L-version) |
43 g |
| Surface finish |
matte gray |
For further specifications see those of the corresponding capsule:
| MK 22 |
| Frequency range |
40 Hz - 20 kHz |
| Sensitivity |
14 mV/Pa |
| Equivalent noise level (A-weighted) |
14 dB-A |
| Equivalent noise level (CCIR) |
23 dB |
| Signal-to-noise ratio (A-weighted) |
80 dB-A |
| Maximum sound pressure level at 0.5% THD |
130 dB-SPL |
Graphics
Top: frequency response and polar diagram MK 22 + CMC 6 and CCM 22
Bottom: frequency response MK 22H + CMC 6 xt
