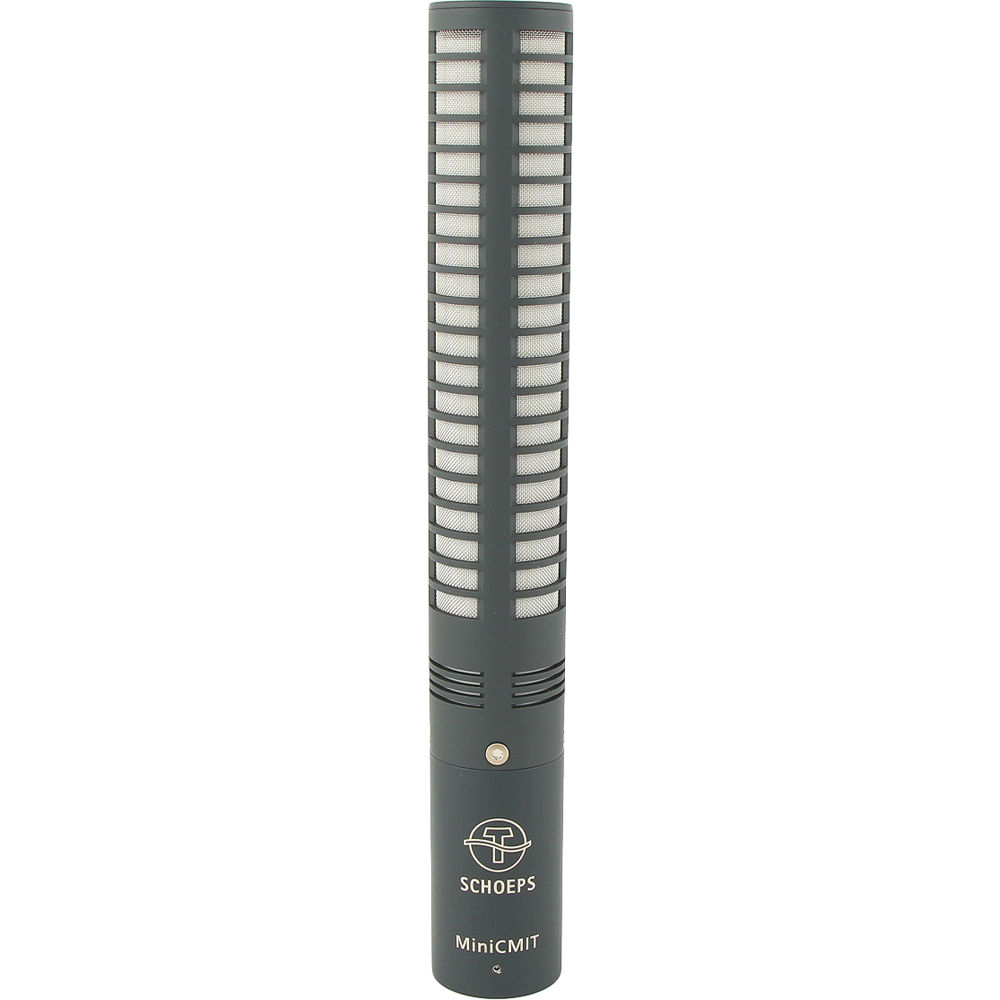

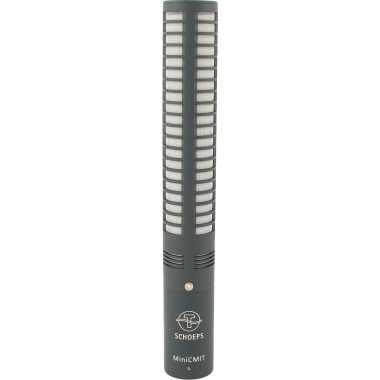

Schoeps MiniCMIT Miniature Shotgun microphone, anthracite-grey, incl. SG 20, W 140, premium case
The shotgun microphone MiniCMIT offers the characteristics of a CMIT 5 in more compact form. The MiniCMIT, CMIT 5 and SuperCMIT (ch2) have identical frequency response curves. Furthermore, the MiniCMIT and CMIT 5 have circuitry with similar characteristics, such that the microphones can be interchanged without altering the sound. For current suitable windscreens and suspensions pleas read the brochure which can be found in the "Downloads" rider.
- Offers the characteristics of a CMIT in more compact form
- Phantom Powering with P12 and P48
- low current draw
- Fixed 4th order low-cut filter at 70 Hz
Application
Specifications
| Sensitivity |
16.5 mV/Pa |
| Equivalent noise level (A-weighted) |
14 dB-A (P48) |
| Equivalent noise level (CCIR) |
24 dB (P48) |
| Maximum sound pressure level at 0.5% THD |
130 dB (P48), 115 dB (P12) |
| Powering voltage |
P48 / >24 V, P12 / >11 V |
| Current consumption with 48 V |
2.3 mA |
| Output impedance |
100 Ω |
| Output socket |
XLR-3M, analog, 1 channel |
| Filter(s) |
fixed low-cut, 70 Hz, 24 dB/oct. |
| Length |
151 mm |
| Diameter |
21 mm |
| Weight |
78 g |
| Additional comments |
SCHOEPS RFI Shield |
| Length of the cable |
>100 m |
Graphics
Frequency response curves CMIT series
Polar patterns CMIT series
Downloads
| Reviews |
Das Neue Blaue - Schoeps MiniCMIT Richtrohr Ist das MiniCMIT klanglich kompatibel zu den anderen Familienmitgliedern der CMIT-Serie und kann im Bedarfsfall einfach ausgetauscht werden, ohne die Soundkontinuität zu stören? |
 |
Download (pdf, 1.7 MByte) |
