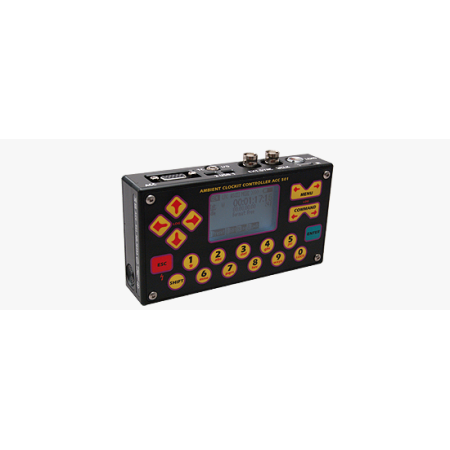

Controller f. Clockit System
A whole set of features as time code, wordclock, MIDI TC and GPS capability makes the ACC501 rather a time code swiss army knife than just a masterclock. An extensive keypad and a graphical LCD with command and menu bars ensure an intuitive but comprehensive user interface. Using a reprogrammable MPU the controller features a future-proof design with growing capabilities. Firmware revisions are obtainable through the download section and can easily be performed by the user.
Main Benefits:
Overview
Tech Specs
| Input |
Time Code, 3 Volts TTL LTC, on a 5-Pin Lemo connector USB Interface, MIDI TC, computer connectivity |
| Output |
Time Code, 3 Volts TTL LTC, on a 5-Pin Lemo connector 9-Pin, for serial connectivity |
| Television System |
NTSC @ 3.58 MHz PAL @ 4.43 MHz |
| Control |
Front Panel: Television System Selection Frame Rate Selection DF or NDF ASCII or LTC Time Code Start Calibration |
| Power Source |
9 VDC from 6 AA Batteries |
| Dimensions (WxDxH) |
8 x 4 x 1" 20.3 x 10.2 x 2.5cm |
| Weight |
2.2 lbs 1 kg |
