• Smooth Manual Faders: 12 x 100mm
• Controls for 3-Band EQ
• Black Anodized Side Panels
• Enhanced Mixing and Routing Capabilities
• Dedicated Backlit Controls
• Illuminated Metering
• Compatible with 633, 664, & 688 Mixers
• Includes 1/4" Headphone Cable: 5'
• Includes USB Cable

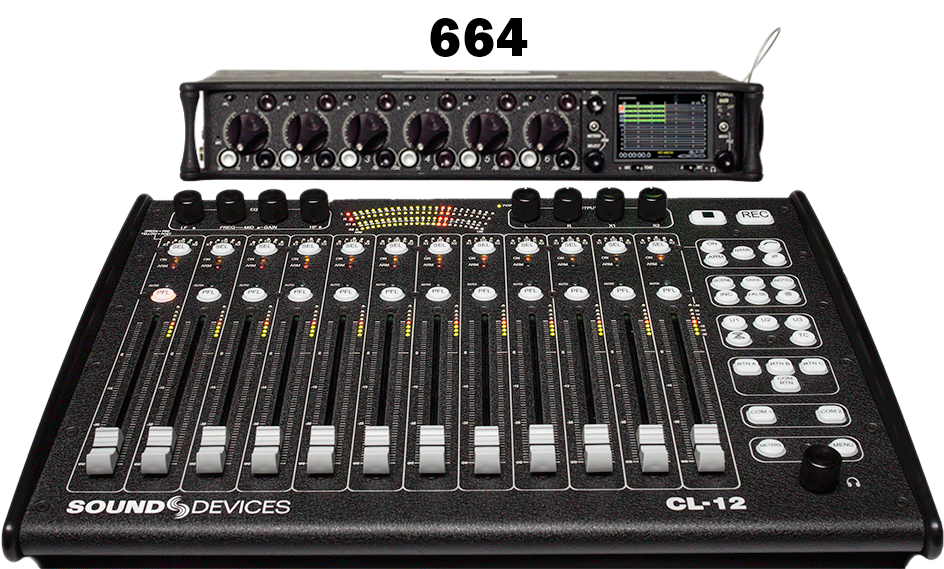

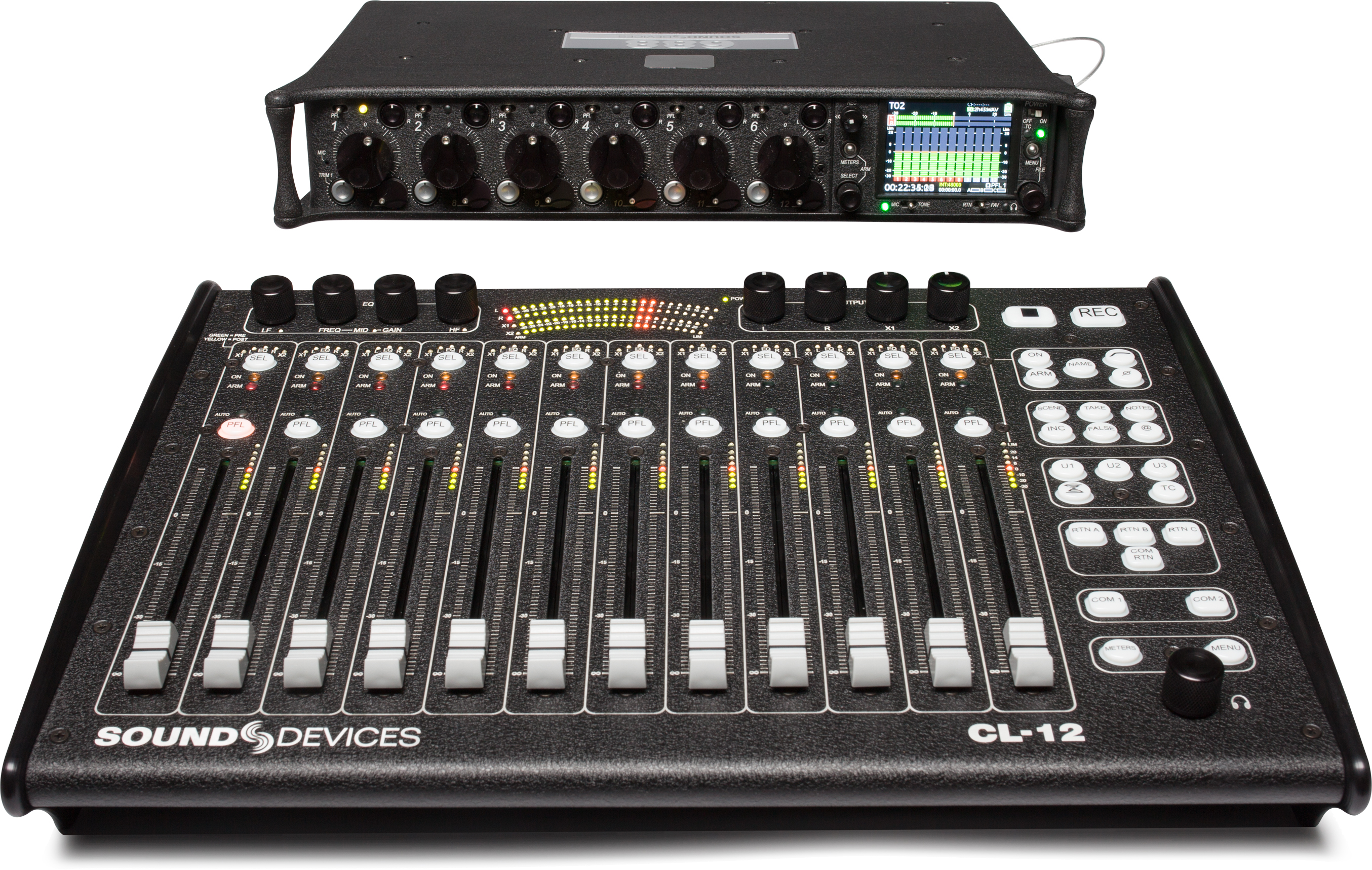

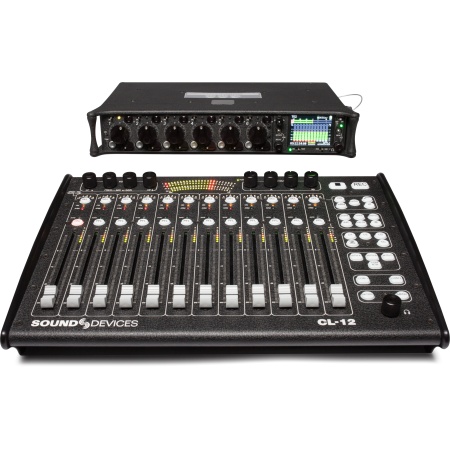

In the fast-paced production landscape, the CL-12 linear fader controller meets a growing demand from production professionals who must make quick transitions between cart and over-the-shoulder applications. The optional accessory significantly expands the mixing capability of the 6-Series mixer/recorder line. The CL-12 attaches directly to any 6-Series mixer with minimal cables, making transitions between cart-based setups and over-the-shoulder workflows quick and easy.

Beautiful Form & Function

The CL-12 comes in two models. The standard CL-12 is designed to be a sleek and durable mixing surface with robust black aluminum side panels. Tactile controls, including illuminated buttons and twelve easy-to-use manual faders, combine with LED metering to improve the whole mixing experience.

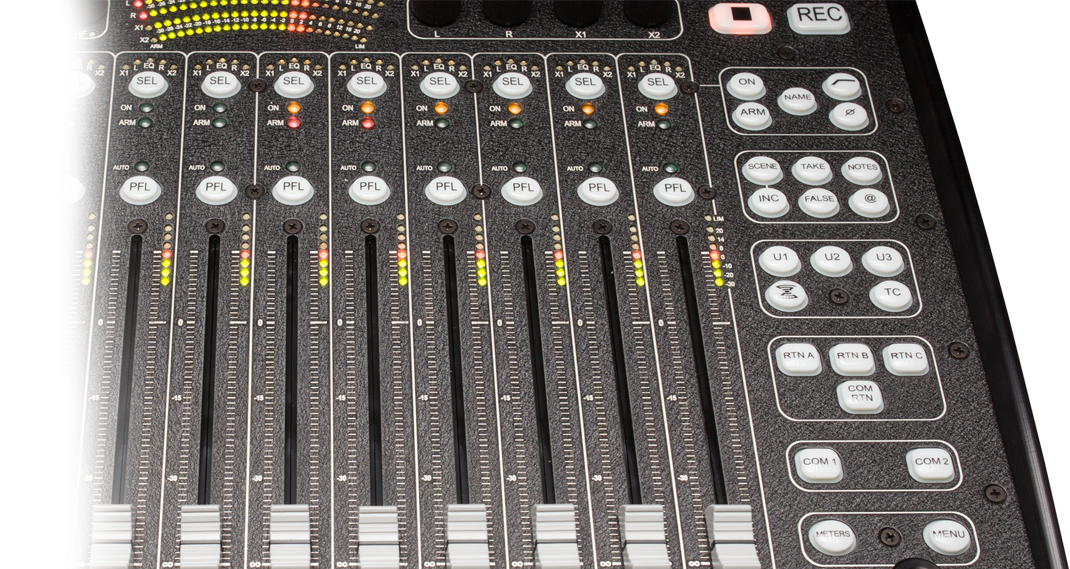

Dedicated Tactile Controls

The CL-12 features large, backlit transport buttons for record and stop, as well as numerous dedicated buttons for fast access to menus and other key functionality, such as track arming, naming, and routing. Metadata entry is a button press away, and there are buttons for PFL, HPF, phase inversion, COMs and RTNs. There are even three user-definable buttons for flexible customization.

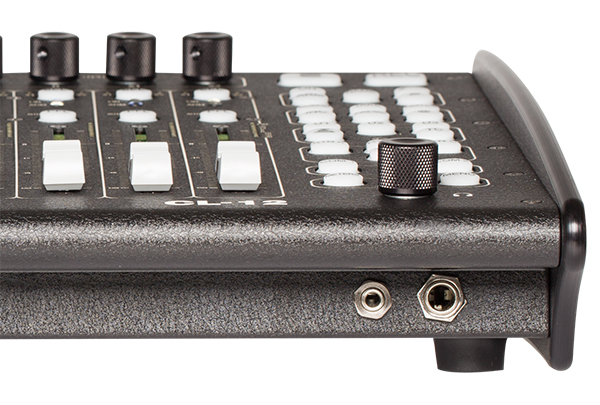

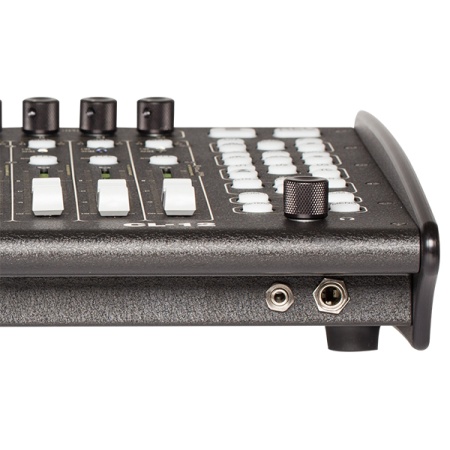

Headphone Monitoring

A 1/4-inch to 1/4-inch headphone cable is also provided to allow monitoring from the CL-12, plus it adds a low-resistance ground connection, giving extra robustness to the mixer/controller combo in the presence of static shock. The CL-12 also contains an 1/8-inch (3.5 mm) port on the front panel.

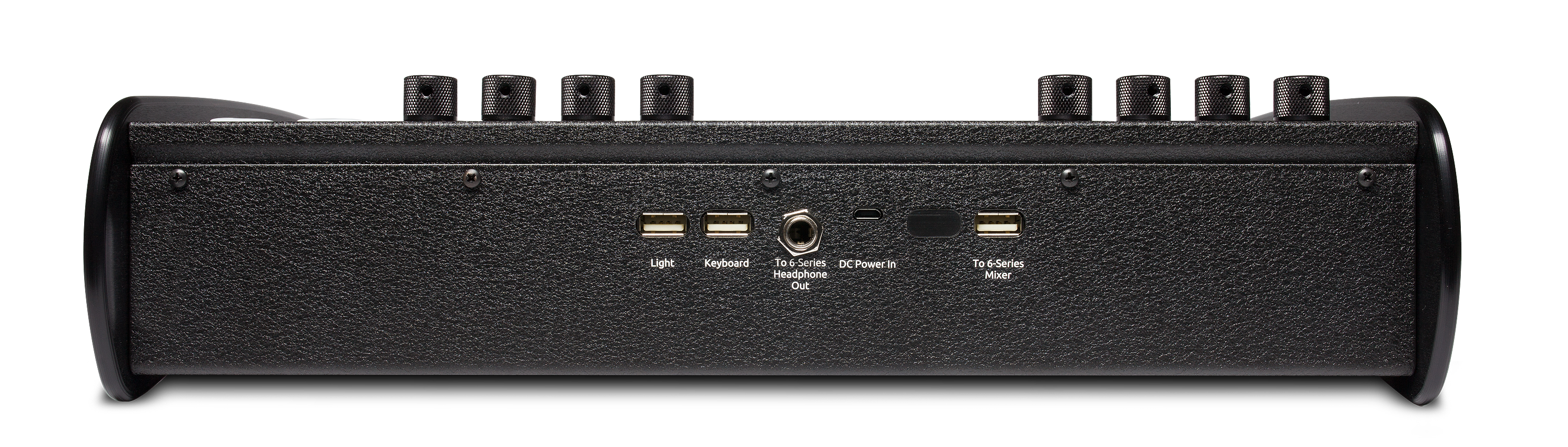

Powering

A USB A-to-B cable provides both power and control. Sound Devices recommends always using the supplied USB cable and 1/4-inch headphone cable for optimum CL-12 performance. Although optional for the 688, a micro USB power cord (not provided with the CL-12) is required as a DC Power Boost for CL-12 integration with the 664 and 633.

For more information, including product specs, see the CL-12 Sell Sheet.

Key Features

• 12 100 mm linear input faders (Penny & Giles option with CL-12 Alaia)
• L, R, X1, X2 level controls with press functionality for input routing
• 3-band parametric equalizer per channel
• Large, backlit transport controls (REC and STOP)
• Numerous dedicated buttons for fast access to menus and key functionality
• Single USB cable connection for power and control, and quick transition from cart to bag
• 22-segment LED meters for L, R, X1, X2
• 7-segment LED pre-fade input meters
• Limiter LEDs
• Indicator LEDs for MixAssist activity, Arm, Channel On, and Routing

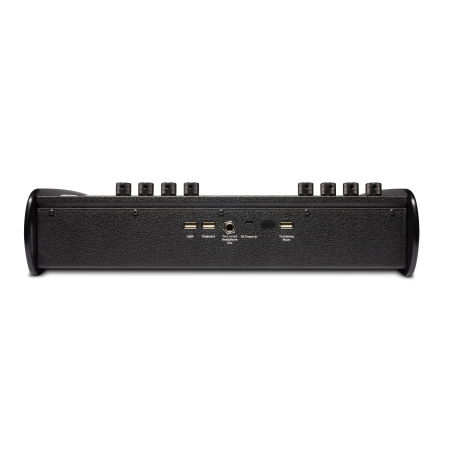

• USB Ports for keyboard, lamp, and 3rd-party remote control applications
• Headphone port for direct audio monitoring from CL-12

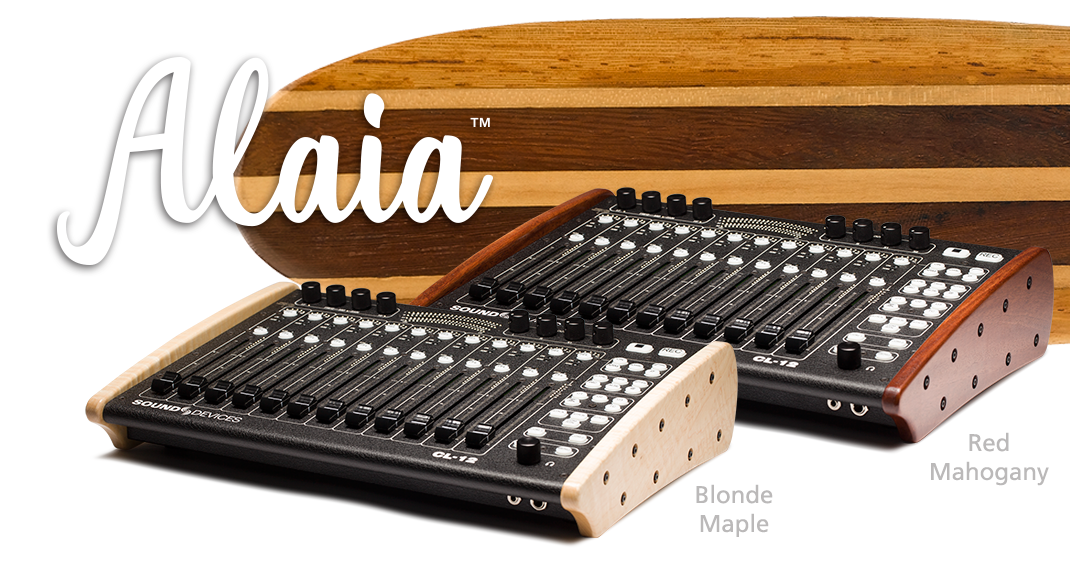

Behind the Scenes with J&E Custom Woodworks - CL-12 Alaia
