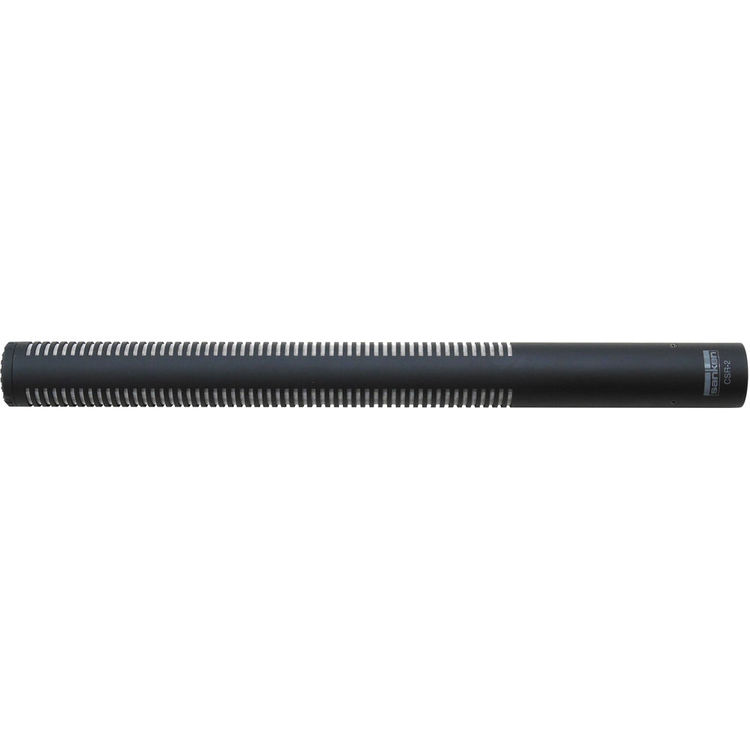

CSR-2 Rear rejection microphone with WM-R2
The matte black CSR-2 Rear Rejection Shotgun Microphone from Sanken is used to capture audio in critical applications such as TV, film sound and more. This microphone features a back electret condenser with 3 capsules. It combines the long acoustic tube and rectangular capsule design of the Sanken CS-2 with the mid and low frequency side and rear rejection of the Sanken CS-3e. A switch allows you to turn off the mid and low frequency side and rear rejection capsule to obtain a wider and warmer sound image. The frequency range is 70 to 18kHz.
Main Benefits
- Back Electret Condenser Transducer
- 3 Capsules Included
- 70 Hz to 18 kHz Frequency Response
- XLR Connector
- 48V Phantom Powered
- Urethane Wind Screen is Included
- Vinyl Case is Included
Description
The CSR-2 is built with an XLR connector and is powered by +48V phantom power. Measuring about 10 inches in length and weighing 6 ounces this mic is a candidate for camera or boom pole mounting scenarios. A urethane wind screen and vinyl case is included.
Tech Specs
| Transducer |
Electret Condenser |
| Polar Pattern |
Lobar |
| Frequency Range |
70 Hz to 18 kHz |
| Equivalent Noise Level |
16 dB |
| Maximum SPL |
123 dB SPL |
| Impedance |
150 Ohms @ 1 kHz |
| Sensitivity |
71 mV/Pa |
| Output Connectors |
1 x 3-Pin XLR |
| Operating Current Consumption |
4.5 mA |
| Operating Voltage |
48 V ± 4 V |
| Length |
9.84" / 250 mm |
| Diameter |
0.87" / 22 mm |
| Weight |
6.00 oz / 170 g |
| Package Weight |
1.25 lb |
| Box Dimensions (LxWxH) |
10.6 x 4.4 x 3.1" |
