Ph 48 volts/electret converter TA4M Shure

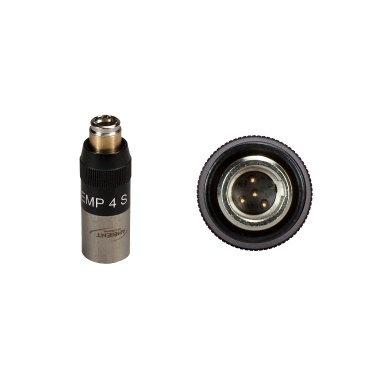

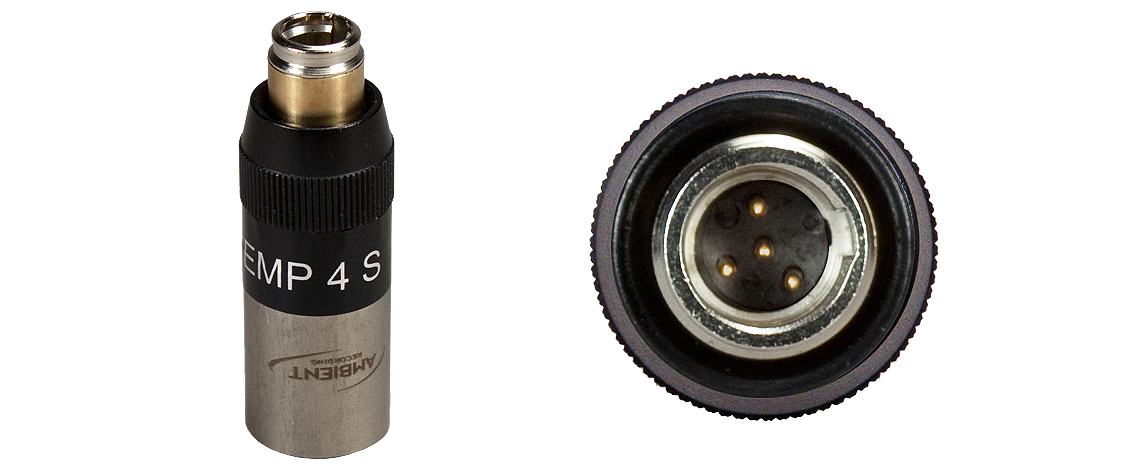

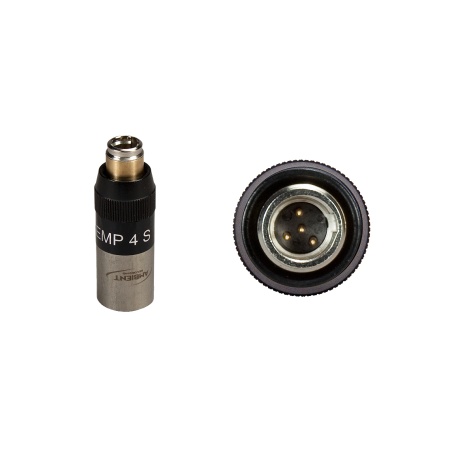

The EMP4S Electret Microphone Power Adapter from Ambient Recording allows hardwired use of a lavalier mic by converting phantom 48V to 5.6V electret power, and outputs an electronically balanced signal with low impedance. This adapter is designed for use with Shure, Beyerdynamic, and MIPRO microphones, and converts a 4-pin Switchcraft connector to a standard 3-pin XLR male connector.
Tech Specs
| Adapter Type |
Converts phantom 48 V to electret 5.6 V power |
| Connectors |
4-pin Switchcraft to 3-pin XLR male |
| Length |
2.1" (53 mm) approx. |
| Diameter |
Adapter: 0.8" (20 mm) approx.
Switchcraft connector: 0.4" (10 mm) |
| Weight |
1.9 oz (55 g) approx. |
