Coiled mixer/camera loom, SD664/633, w/ TC, 2 breakouts, XLR

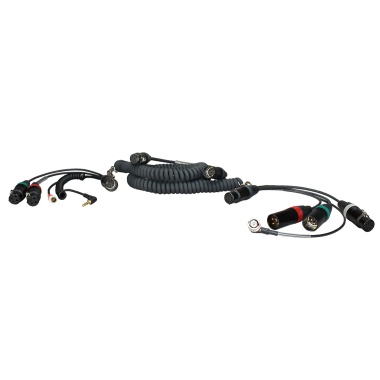

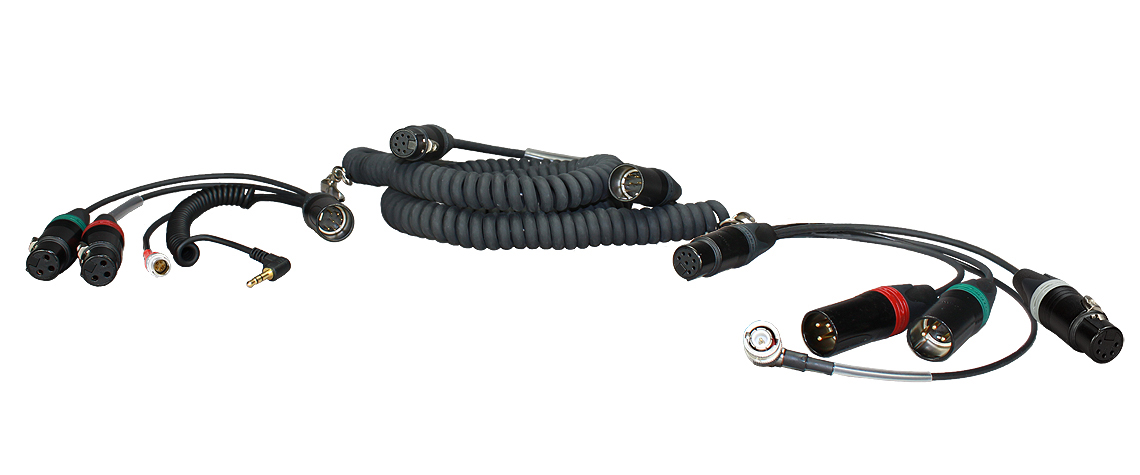

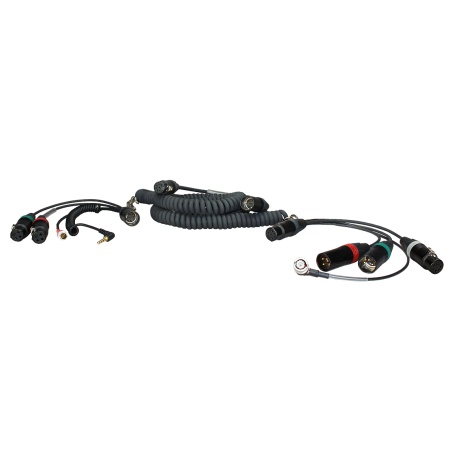

The Coiled Breakaway Cable for Sound Devices 664 from Ambient Recording is used to connect a Sound Devices 664 mixer to a digital camcorder featuring a 5-pin XLR mono return to camera. It consists of three sections that come apart: two Y-breakout cables (one connects to mixer and one to camera) and a coiled breakaway cable in between. The overall extendable length of the cable is 15'.
Overview
XLR 7-Pin Male to XLR 7-Pin Female Coiled Mixer/Camera Loom Cable
The XLR 7-Pin Male to XLR 7-Pin Female Coiled Mixer/Camera Loom Cable from Ambient Recording is a breakaway cable that provides two balanced lines (single shielded) and two leads for the return signal. The coiled cable reaches from over four feet when at rest, all the way to over sixteen feet when extended.
The cable features a 7-pin XLR male connector on one end, and a 7-pin XLR female at the other. The cable needs the appropriate breakout cable adapters (Y-cables) for use with specific mixer and camera combinations.
HBYATC-L-7-35W Breakout Y-Cable for Sound Devices 664 Mixer with Timecode Lemo
The HBYATC-L-7-35W Breakout Y-Cable from Ambient Recording features the mixer-side Y-cable for a Sound Devices 664 mixer-camera loom. At one end of this Y cable is a 7-pin XLR connector. On the other end are two XLR connectors, one 3.5mm TRS, and a 5-pin Lemo connector.
- 7-pin XLR female to dual 3-pin XLR male
- Mono return via 5-pin XLR female
- BNC right angle plug for time code from the camera to the SD 552, SD 633, or SD 664 mixer
Tech Specs
| Coiled breakaway cable (HBS7-7): |
| 7-pin XLR female to 7-pin XLR male |
| Breakout cable (HBYATC-L-7-35W): |
| 7-pin XLR male to 2x 3-pin XLR female |
| Return via 3.5 mm TRS right-angle plug on coiled cord and 5-pin Lemo for timecode |
| Return mono |
| Length approx. 30 cm |
| Breakout cable (HBY7TC-35): |
| 7-pin XLR female to 2x 3-pin XLR male |
| Return via 3.5 mm TRS plug on coiled cord and BNC right-angle |
| Return mono |
| Length approx. 30 cm |
| Breakout cable (HBYATCIN-L-7-35W): |
| 7-pin XLR male to 2x 3-pin XLR female |
| Return via 3.5 mm TRS mini right angle plug on coiled cord |
| Return mono |
| 5-pin Lemo (timecode / out) connector |
| Length approx. 30 cm |
