Adapter for Sennheiser 3000/5000 to Lectrosonics HH
The HHAII Sennheiser 5000 to Lectrosonics Handheld Adaptor from Ambient Recording is designed to mount a microphone head onto a handheld transmitter. This adapter allows you to mount the heads for the Sennheiser SKM 5000 series such as the Neumann KK 104 and 105 to any transmitter that uses the Shure mount. When combining Neumann's condenser capsules with Lectrosonics' digital hybrid-based HH, the voltage can be boosted to 15V delivering companderless dynamics at highest SPL plus signal-to-noise ratio.
Main Benefits:
- the HHA adds only 8,3 mm length to the system

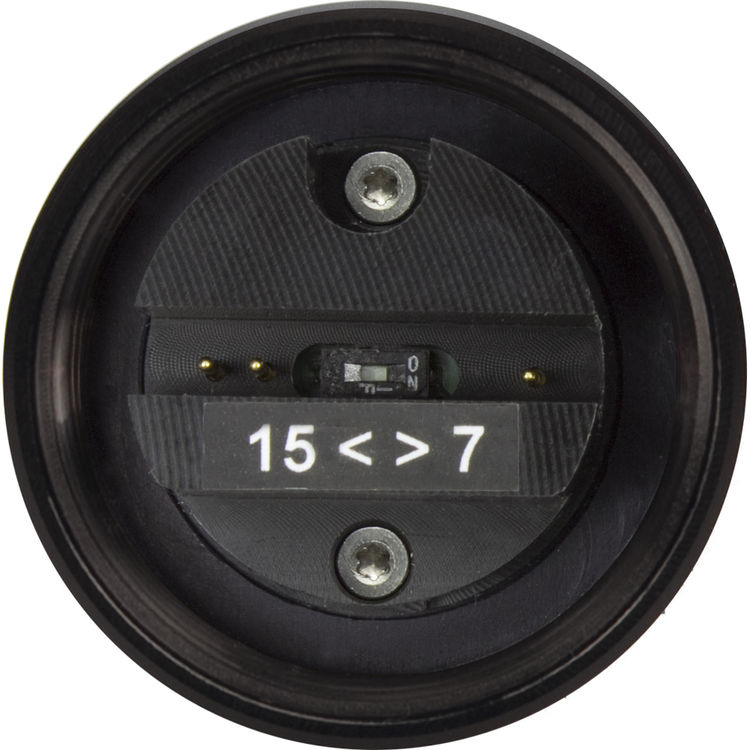

- switchable 7V/15V
Overview

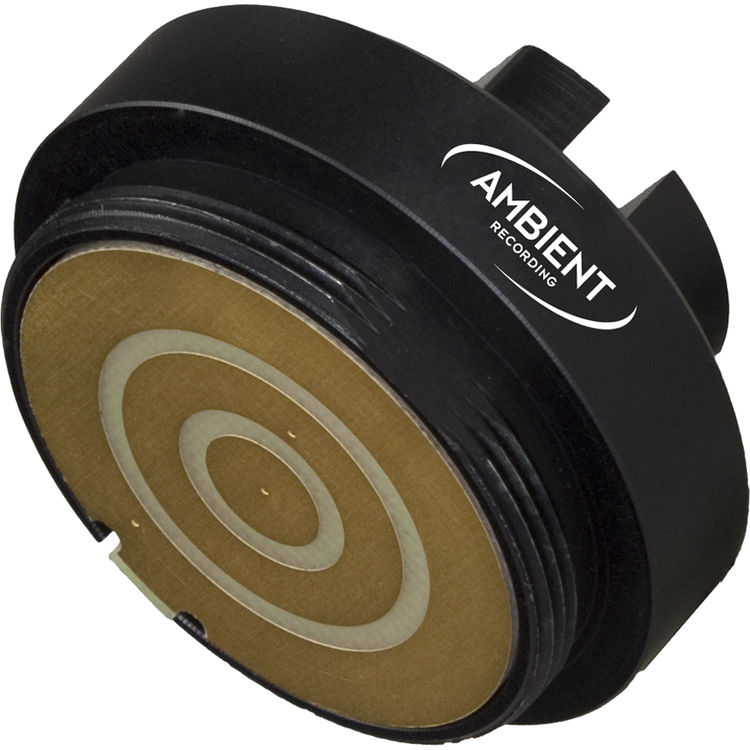

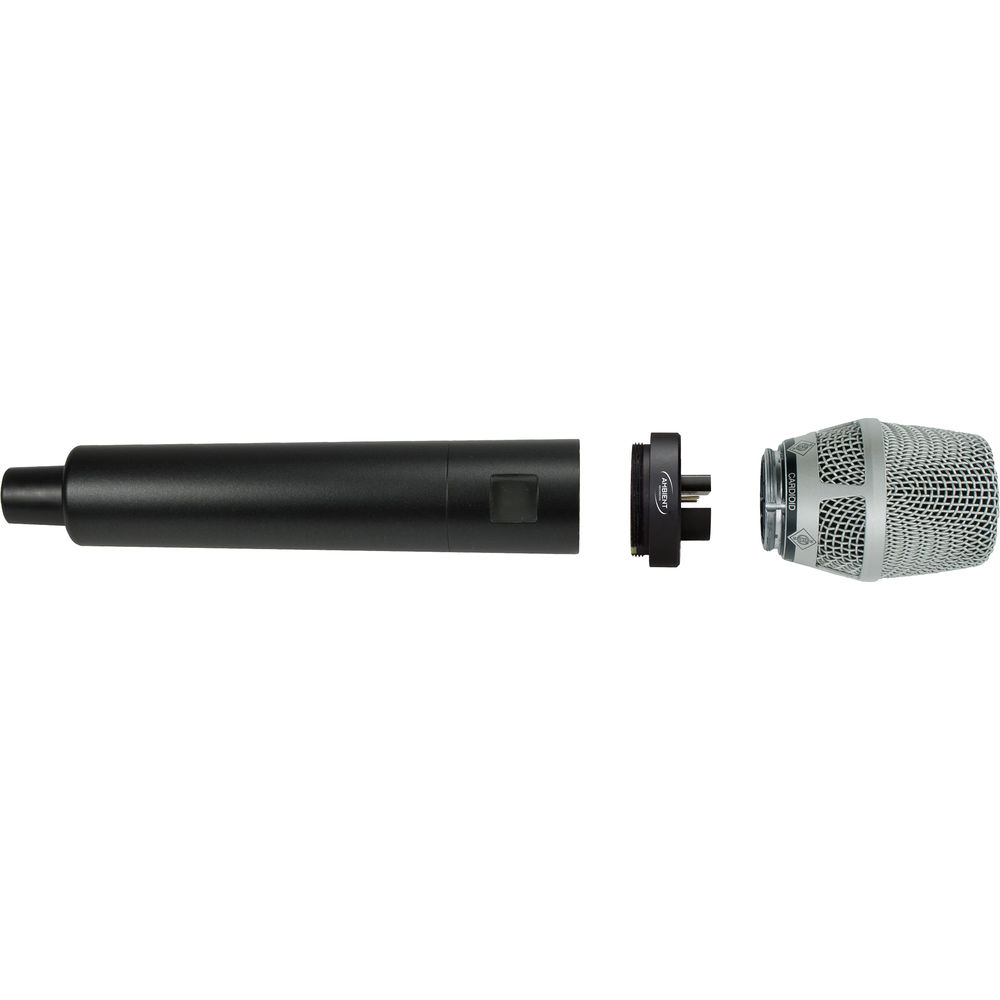

The Ambient Hand Held Adaptor adapts Neumann and Sennheiser microphone heads for Lectrosonics handhelds with Shure mount
Made out of solid aluminum, this unobtrusive device lets you match your favorite microphone sound with your favorite wireless handheld. The adaptor allows to mount heads for the Sennheiser SKM 5000 series such as the highly acclaimed Neumann KK 104 and 105 to any transmitter that uses the widely spread Shure mount.
An active power converting circuitry steps up the 5V Bias voltage found on those systems to Sennheiser-typical 7V.
When combining Neumann’s true condenser capsules with Lectrosonics’ digital hybrid based HH, this voltage can be additionally be boosted to 15V delivering companderless dynamics at highest SPL plus signal to noise ratio unsurpassed in previous wireless systems.
Tech Specs
| Outer Diameter |
1.42" (36 mm) |
| Height |
Visible: 0.33" (8.3 mm)
Overall Height: 0.87" (22 mm) |
| Material |
Anodized aluminum, gold-plated contacts |
| Weight |
0.8 oz (24 g) |
Compatibility
| Microphone Heads |
Handheld Transmitter |
Neumann® - KK104S
KK105-HD
KK105S |
Lectrosonics® HH |
Sennheiser® - MD5235
ME5002
ME5004
ME5005
ME5005-E
ME5009 |
|
