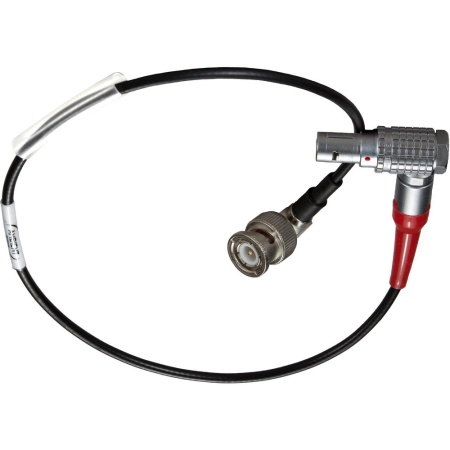

Cable Lemo 5-pin RA, outlet 9 o clock, to BNC RA
The 16" LEMO 5-Pin to BNC Timecode Cable from Ambient Recording is an output cable designed for use with timecode devices. Viewing the plugged connector from the back with the red dot at 9 o'clock, the cable has an angle of 270°. The direction of the outlet cannot be changed.
Main Benefits:
- Signal flow / wiring from BNC to LEMO connector
Overview
Timecode output cable with Lemo 5-pin RA, outlet 9 o’clock, to BNC RA. Because different Lemo connectors are needed for differing cable outlet directions, it is mandatory to specify the required direction of the cable outlet. Viewing the plugged connector from back with the red dot on top, 9 o’clock (270 degrees).
The direction of outlet can not be changed.
Tech Specs
| Compatibility |
Ambient Timecode devices |
| Connector 1 |
LEMO 5-pin right angle |
| Connector 2 |
BNC right angle |
| Length |
16" (40 cm) approx. |
| Weight |
1 oz (30 g) approx. |
