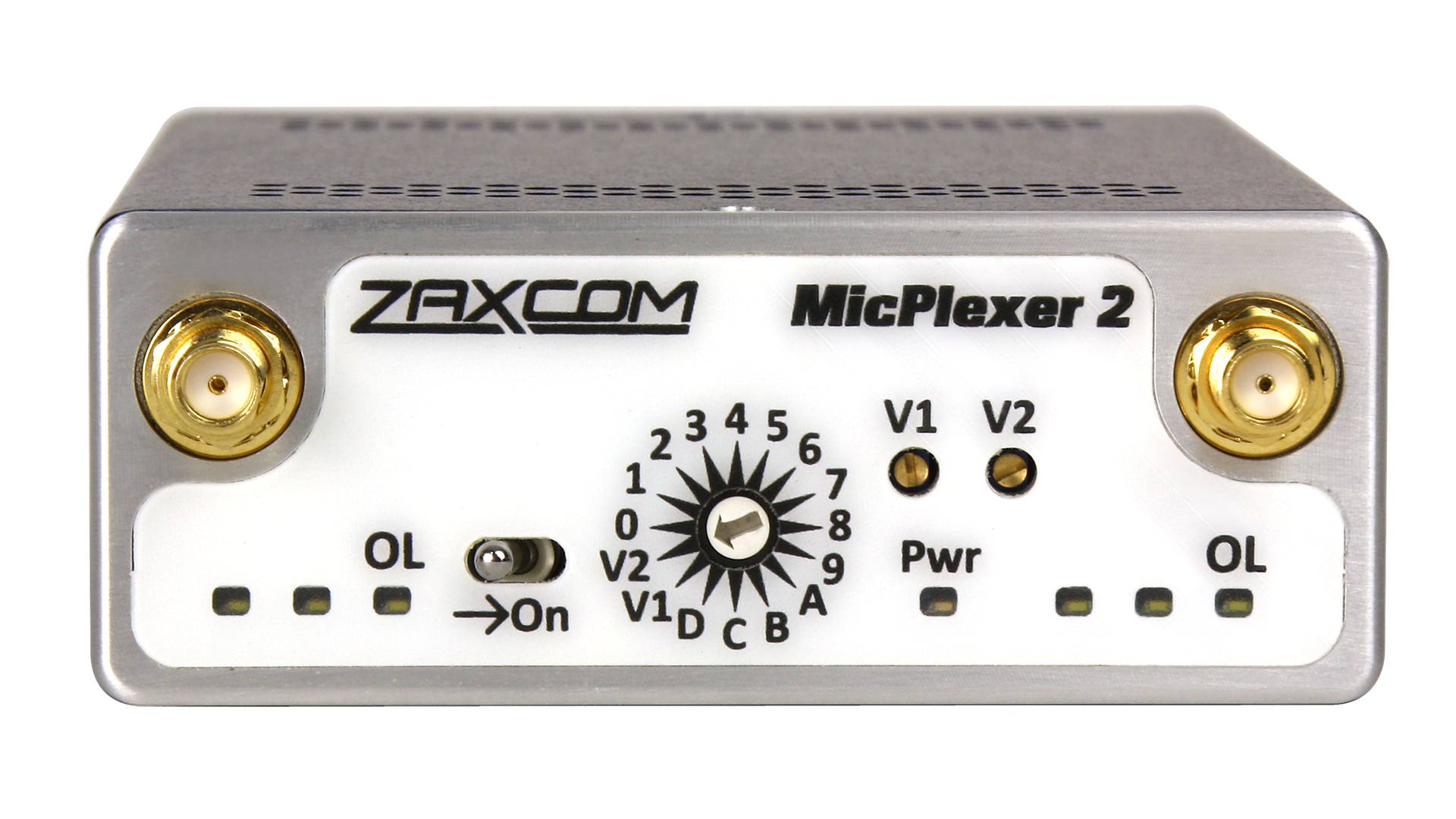

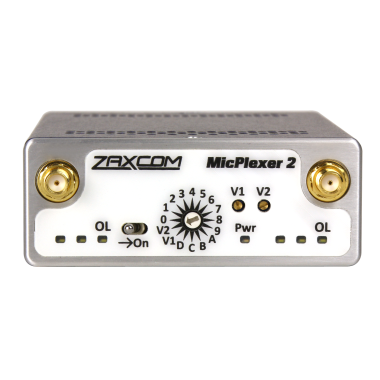

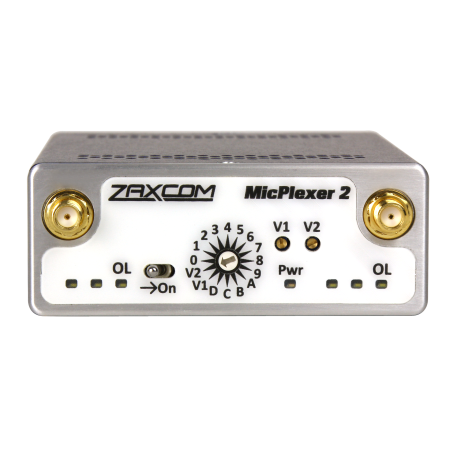

MICP2 MicPlexer 2 antenna multi-coupler w/tuneable filter
The Micplexer 2 is an antenna distribution amplifier for diversity wireless microphone systems. The MicPlexer 2 connects to 2 antennas and distributes the signals to up to 3 wireless microphone receivers. Each of the 2 RF channels has 6 dB of RF gain. The channel gain can increase the usable distance of the wireless microphone receiver depending on the ambient RF noise floor at the location the MicPlexer 2 is used. The MicPlexer 2 is the same size as a standalone Zaxcom receiver. It can be used stand alone or within a ZaxPaq and with any combination of Zaxcom wireless receivers (QRX100, QRX235, QRX200, RX900).
Main Benefits
- Notification: Smart LED’s tell you when there’s too much RF signal overloading your wireless and interfering with performance.
- Amplification: Provides an additional 6 dB of gain on every antenna output.
- Filtration: Improve your wireless performance by removing unwanted RF from your work space, choose from seven pre-set frequency blocks (20 – 26) or create your own 35 MHz window in one of the two user-assignable positions.
Tech Specs
- Frequency Tuning Range: 512-702 MHz (35 MHz band, user selectable)
- Tuned Pass Band: 35 MHz
- Attenuation +/- 25 MHz: 12.5 dB
- Attenuation +/- 50 MHz: 35 dB
- Attenuation +/- 75 MHz: 51 dB
- RF Gain: 6 dB
- RF Channels: 2
- Channel Cross-talk: Less than 40 dB
- Amplifier Noise Figure: .35 dB
- OIP3 Distortion: +37 dB
- Power Requirement: 8 - 18 VDC @ 100 ma
- Size: 1.25" x 3.25" d 4.75"
- Weight: 8 ounces
