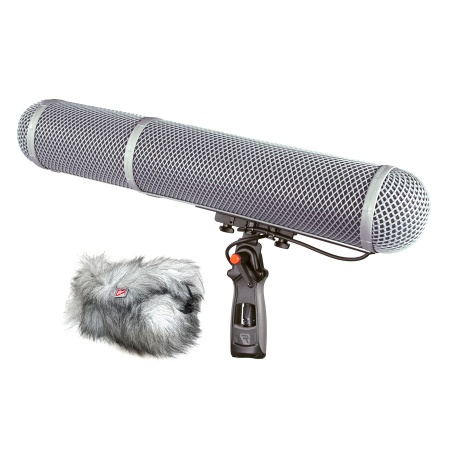

Product Code: 086007
The Modular Windshield 7 Kit is suitable for shotgun microphones from 401mm up to 450mm in length and 19-34mm diameter with a 3-pin XLR connector.
Main Benefits:
- Flexible, complete windshield and suspension package, which provides varying levels of windshielding for numerous microphone configurations
- The iconic Windshield Kit is the industry standard, and leads the way in windshielding and suspension technology
Description
The Modular Windshield Kit is the professionals' choice when maximum isolation from wind and handling noise is required.
This complete modular system can be configured to allow almost any microphone to be shock-mounted and provided with varying degrees of windshielding. Components may be ordered separately, or as one of a series of kits, which simplify the selection process for many common configurations.A Modular Windshield Kit is comprised of the following three main components: Modular Suspension, Modular Windshield and Windjammer.

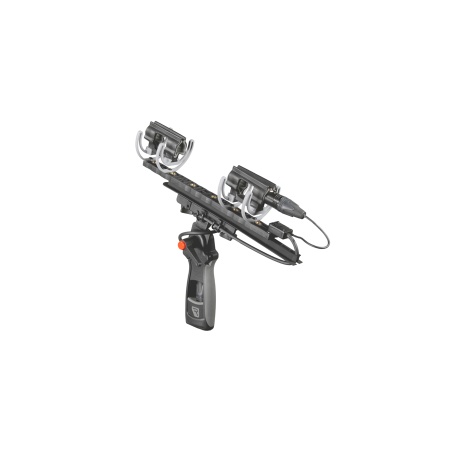

Modular Suspension
Our suspensions provides complete isolation against handling noise and cable-borne noises, by supporting the microphone in a cradle arrangement using Lyre suspension webs.
Windshield
The Windshield basket completely surrounds the microphone and its connector, sliding onto the Modular Suspension to provide up to 30dB of wind noise attenuation. This is the first layer of windshielding protection for your microphone.

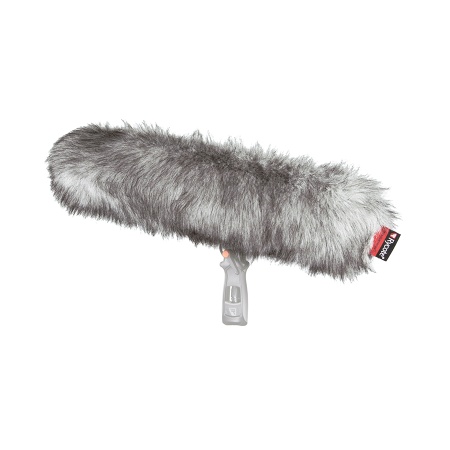

Windjammer
The Windjammer introduced by Rycote in 1985, is high quality synthetic fur covers, designed to fit perfectly over the Modular Windshield. It gives an additional 20dB of wind noise attenuation. Fitted with a drawstring & toggle to allow snug and easy fitting. Modular Windshield Kits, including zipped Windjammer are also available on request.
Tech Specs
The Modular Windshield 7 Kit is suitable for shotgun microphones from 401mm up to 450mm in length and 19-34mm diameter with a 3-pin XLR connector.

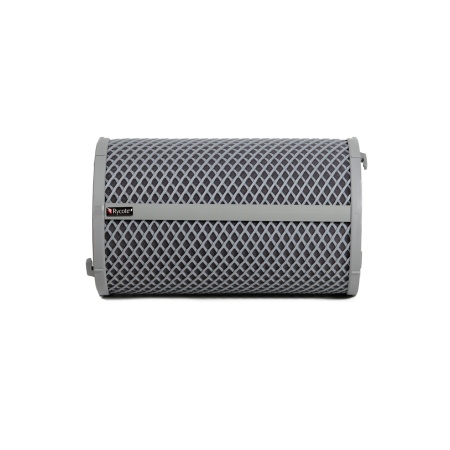

Windshield Body Length: 500mm (WS4 + Extension 170mm)
Total Windshield Length: 610mm (includes the End Caps)
Height of Windshield 100mm
Net Weight:
Gross Weight:
Windjammer Fur Length: 40mm
Windjammer Fur Colour: Grey
Microphone Connector: XLR-3F
Max Wind-noise Attenuation: 50 dB
Finding the correct Windshield Kit will depend on the type, length and diameter of the microphone.
Because the whole microphone is encased in a windshield basket the total length of the microphone including the XLR cable must be accounted for, this means adding 50mm to the length of the mic.
For a windshield to work effectively the microphone should be mounted centrally within the windshield, therefore the microphone + XLR length should approximately equal the windshield body length. The body length of our windshields is the total length, excluding end caps.
Compatibility
Contents
2 x Duo-Lyre 72 (19/34)
2 x Single Lyre 82 (19/25) (as spare)
Brush
Hex head key
