QRX235 4-channel ENG receiver

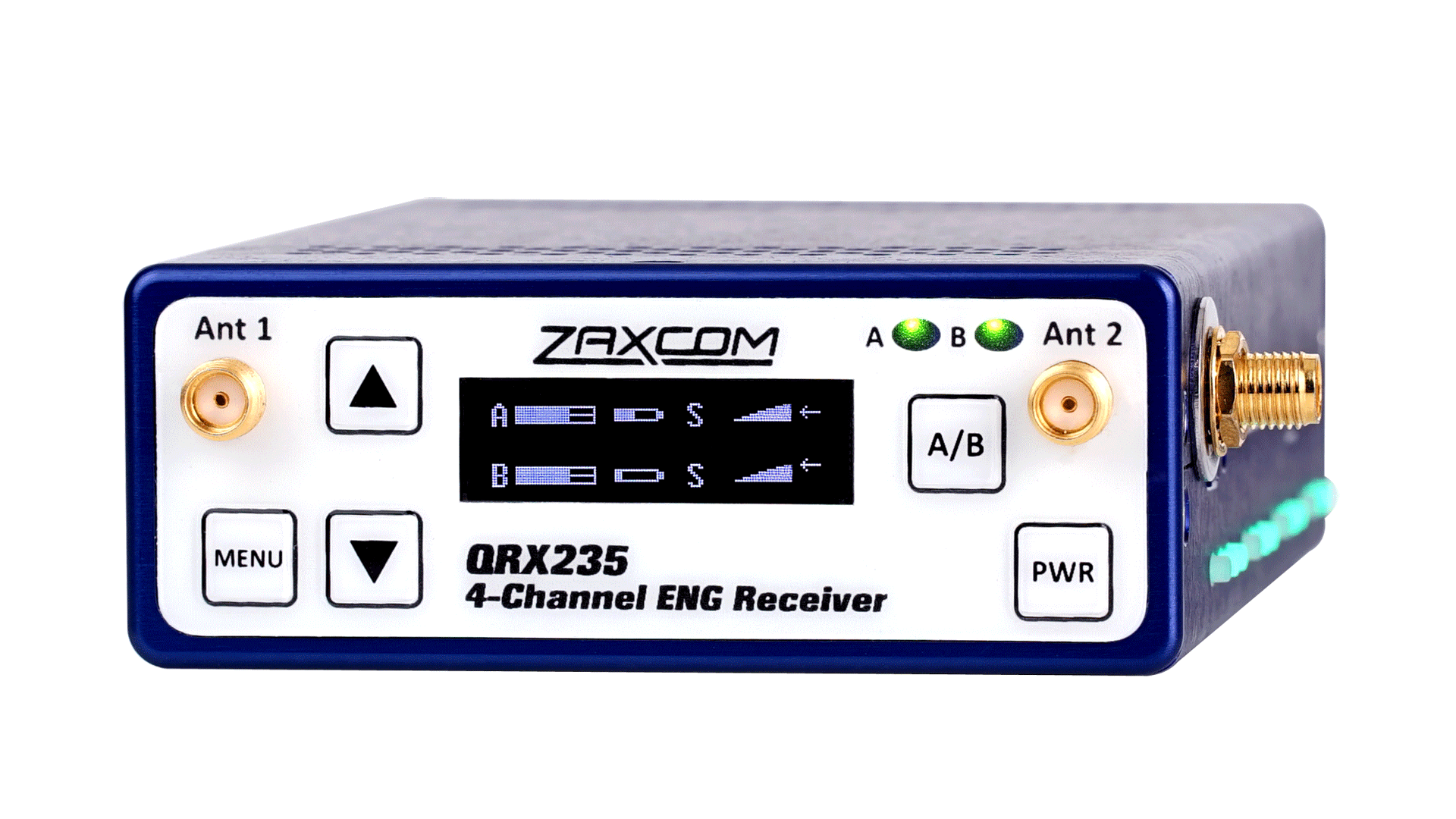

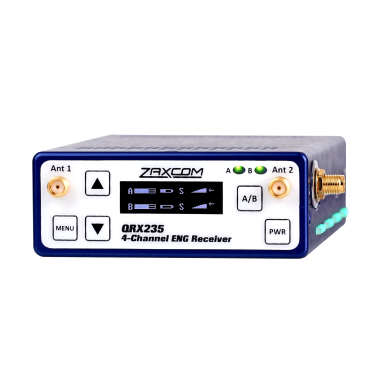

QRX235 receives up to 4 channels of 100% digital audio from up to 2 transmitters, any combination of mono and stereo transmitters is accepted. The audio output can be either analog or AES. It also features our patented side mounted LED’s, these provide visual confirmation of audio and RF reception. The LED’s are very bright and are visible with the QRX235 mounted in its Zaxcom camera mount even in bright sunlight.
Main Benefits
- New digital modulation
- Enhanced receiver design giving it maximum sensitivity while lowering its noise floor
- The elimination in any difference between single and dual mode
Tech Specs
- Receiver
- Single Mode Receiver Type: True diversity single conversion digital demodulator
- Dual Mode Receiver Type: Antenna diversity single conversion digital demodulator
- RF Modulation: proprietary digital method
- RF Frequency Range: 518.0 to 872.0 MHz (blocks are 20 to 36 MHz wide)
- RF Frequency Step: 100 KHz
- RF Bandwidth: 200 KHz
- Channel Separation: 500 KHz (700 KHz recommended)
- Sensitivity: -110 dBm
- Antenna Connector: 50-ohm SMA female
- Receiver Audio – Analog Output (x 4)
- Dynamic Range: 114 dB
- Distortion: 0.001%
- DAC Bit-depth: 24 bits
- Connector: TA-5M
- Audio Output Level: Line: -10 to 0 dBm active balanced
- Receiver Audio – Digital Output (x4)
- Signal Format: AES Balanced
- Audio Output Connector: TA-5M
- IFB Transmitter (QIFB Option Only)
- RF Power Output: 50 mW
- RF Modulation: Digital Spread Spectrum
- RF Frequency Range: 2.403 to 2.475 GHz
- RF Frequency Step: 0.001 GHz (1 MHz)
- RF Bandwidth: 1 MHz
- Channel Separation: 2 MHz
- Antenna Connector: 50-ohm SMA Female
- Emission Designator: 180 KV2E
- FCC Part: CFR Title 47, Part 18IFB
- 2.4 GHz Audio Transmitter (QIFB Option Only)
- Dynamic Range: 103 dB
- Distortion: 0.01%
- Frequency Response: 20 Hz to 12 kHz
- System Group Delay: 10 ms
-
- IFB Audio Input (QIFB Option Only)
- Connector: Stereo 1/8″ (3.5 mm)
- Type: Balanced / Unbalanced
- Level: -10 dBu
- Impedance: 10 k Ω
- ADC Bit-depth: 24 bits
- ADC Sampling Rate: 48 kHz
- Timecode Input (QIFB Option Only)
- Connector: Stereo 1/8″ (3.5 mm)
- Level Range: 1 to 5V, P-P
- Impedance: 10 k Ω
- Timecode Output (QIFB Option Only)
- Connector: Stereo 1/8″ (3.5 mm)
- Level Range: .2 to 5V, P-P
- Impedance: 8 Ω
- Timecode Reader / Generator (QIFB Option Only)
- Clock Accuracy: 1.54 PPM (1 frame out in 6 hours)
- Timecode Type: SMPTE
- Timecode Frame Rates: 23.98, 24, 25, 29.97NDF, 29.97DF, 30NDF, 30DF
- Misc.
- Weight: 6.0 oz (170 grams)
- Dimensions: 1.25″ x 3.25″ x 5.25″ (32mm x 83mm x 133mm)
- External Power: 9 to 18 VDC (300mA @ 12VDC)
- Internal Power: N/A
- Display: Graphic LCD Panel
- All specifications subject to change without notice.
- Zaxcom Digital Wireless is protected under patent #’s: 7,711,443, 7,929,902 & D608,339
