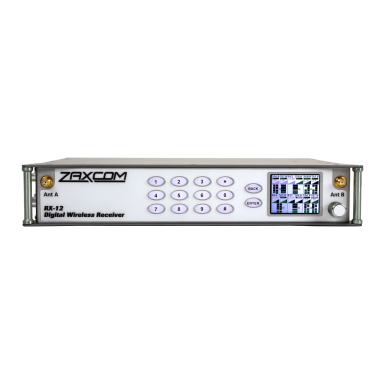

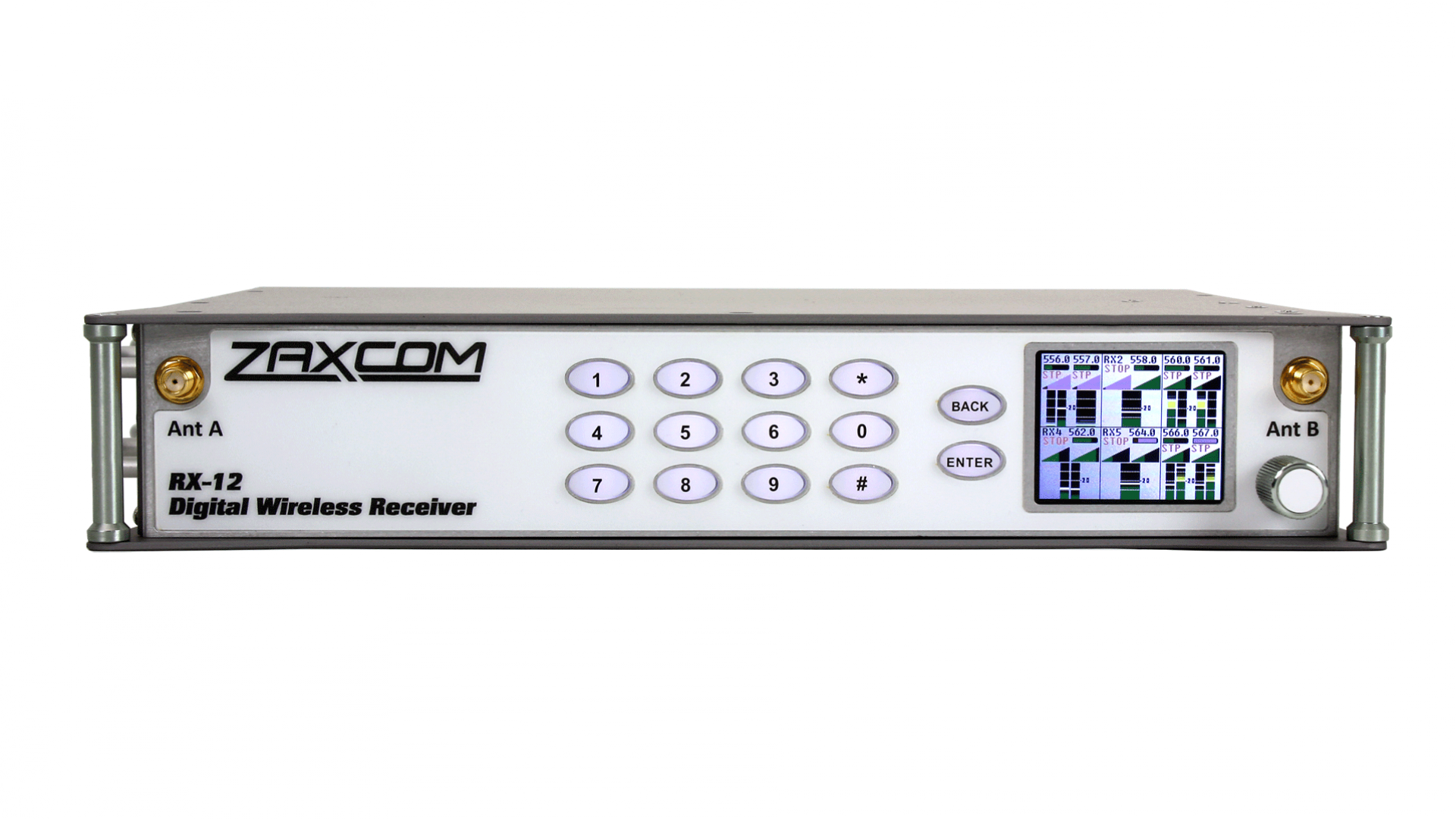

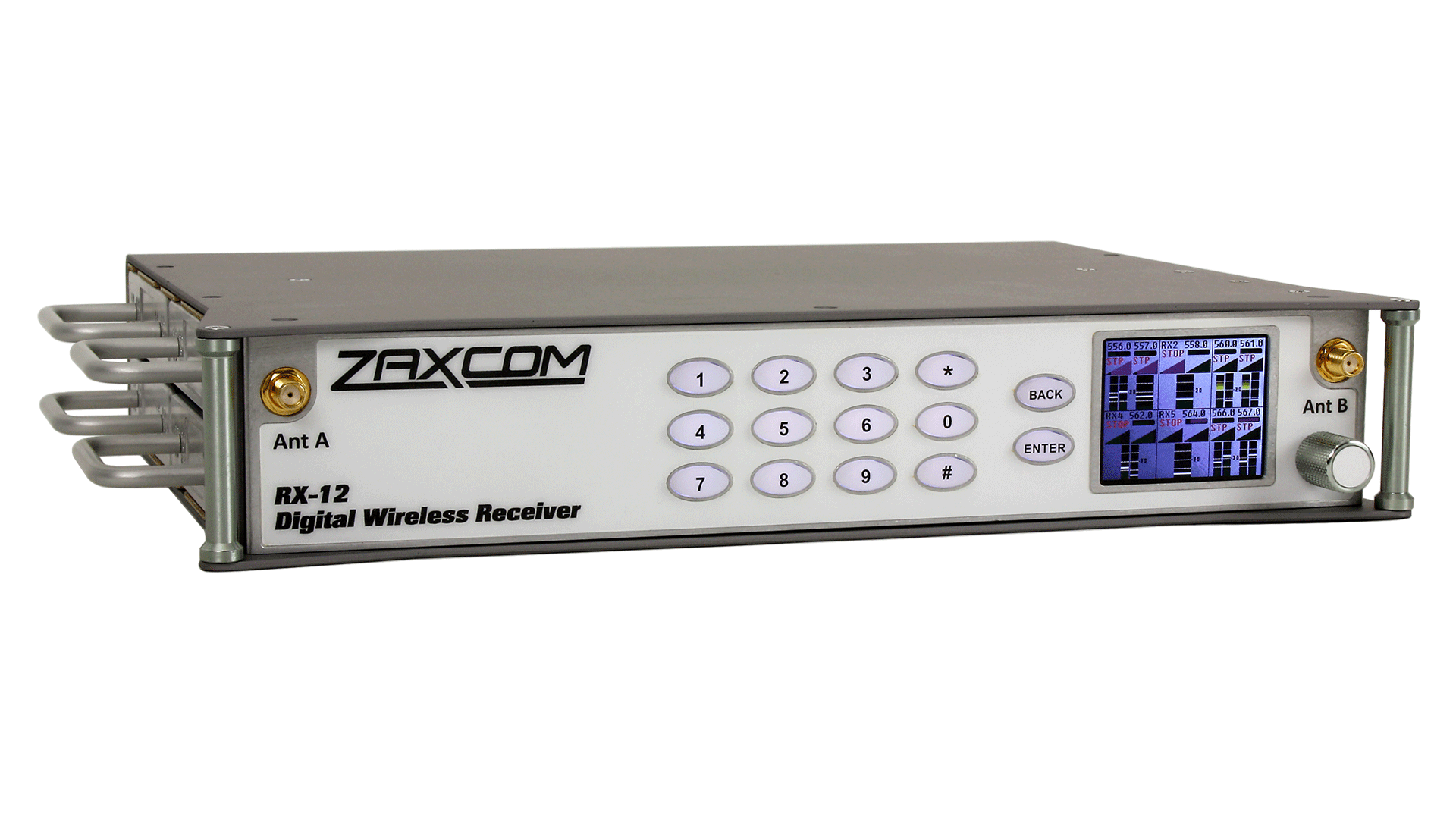

RX-12 wide-band receiver
RX-12 wide-band receiver with tracking front end filter, power and antenna distribution. RX-12 is a one stop receiver solution for your bag or cart. It contains a 35 MHz tracking front end filter to eliminate interference from unwanted stray RF, an RF amplifier and antenna and power distribution for up to six QRX212 dual receiver modules for the reception of twelve separate TRX transmitters.
Description
The built-in frequency scanner and Auto-Pick software can coordinate and choose the best frequencies. Pair the RX-12 with Nomad 10 or Nomad 12 and ZaxNet will re-frequency your transmitters to match with the touch of a button. In addition, the RX-12 and Nomad combo allows for quick and easy TRX gain adjustments.
RX-12 also has an additional antenna distribution through an amplified RF loop through.
Tech Specs
- Output
- Analog Audio Output: Balanced 0dB @ -20 dBFS (2-channel receiver)
- Digital Audio Output: AESEBU (2 pair per receiver)

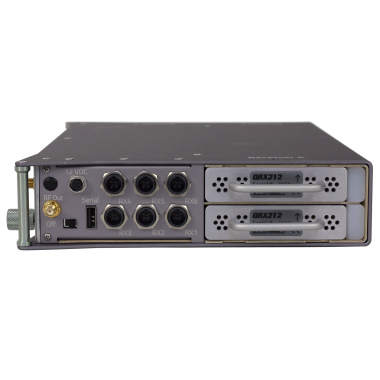

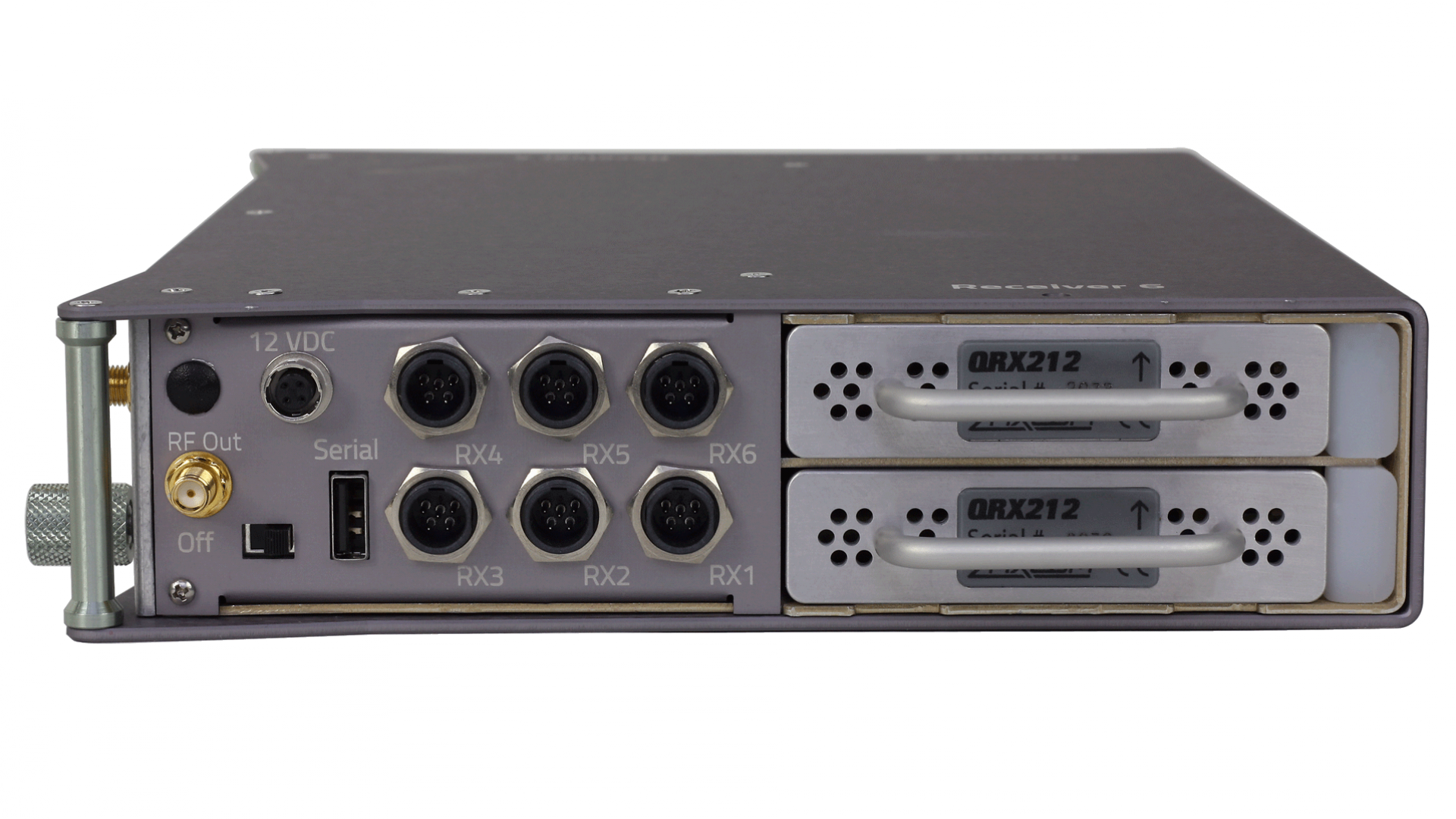

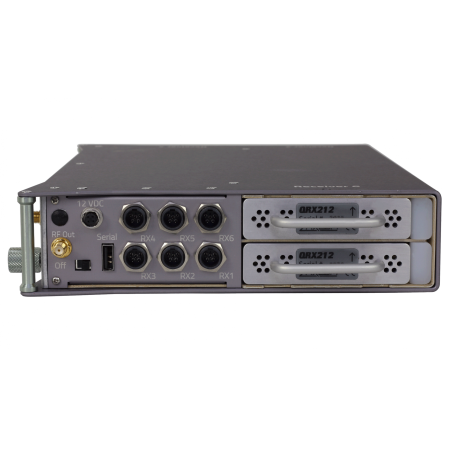

- Audio Connectors: 6 x TA5M
- Receiver
- RF Connectors: 4 SMA, including loop through
- RF Impedance: 50 ohm
- RF Gain Input / Output: 4 dB
- RF Amp Noise Figure: .5 dB
- RF Amp IP3: +30 dB input
- RF Filter Band Pass: 35 MHz
- RF Tuning Range: 512 - 698 MHz

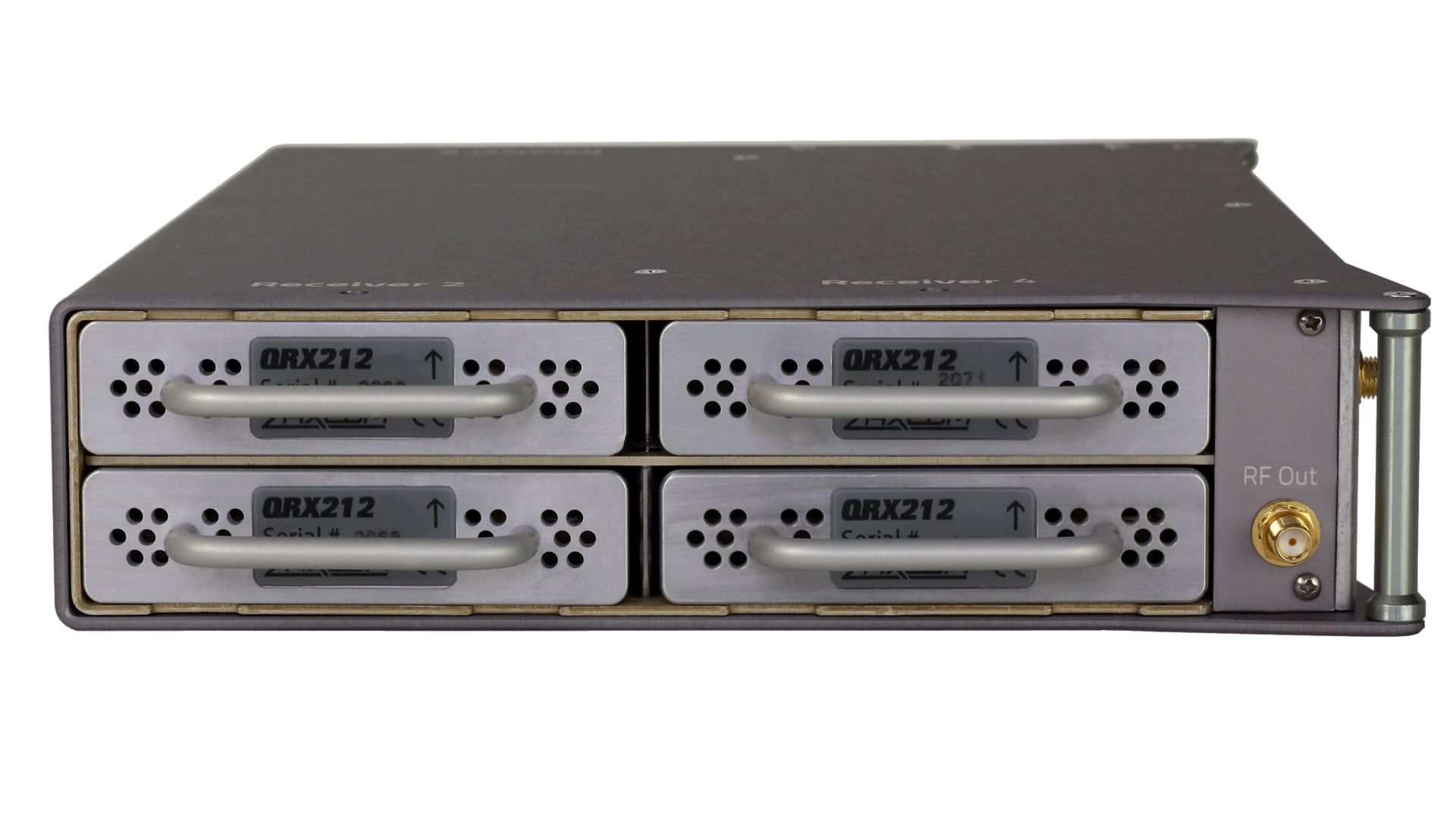

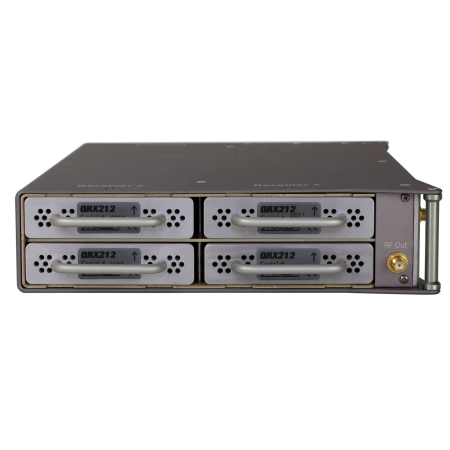

- QRX212 Module
- Receivers Per Module: 2
- Receiver Modulation: Zaxcom Proprietary Digital
- Tuning Range: 512 - 698 MHz
- Power Consumption: 300 ma @ 12 VDC
- Size: 5" x 3" x .8" (L x W x H)
- Misc
- Power: 8 VDC to 18 VDC (12 VDC nominal @ 100 ma)
- Power Connector: Hirose HR10A-7P-4P

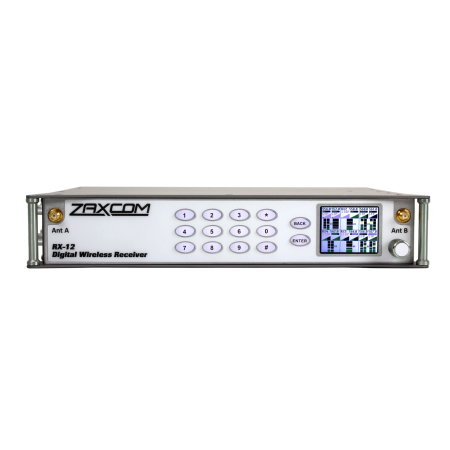

- LCD Screen: TFT daylight readable color
- LCD Size: 2.2" diagonal
- Size: 10.5" x 8" x 2" (L x W X H)
- Weight: 6.2 lbs (loaded w/ 6 x QRX212 receiver modules)
