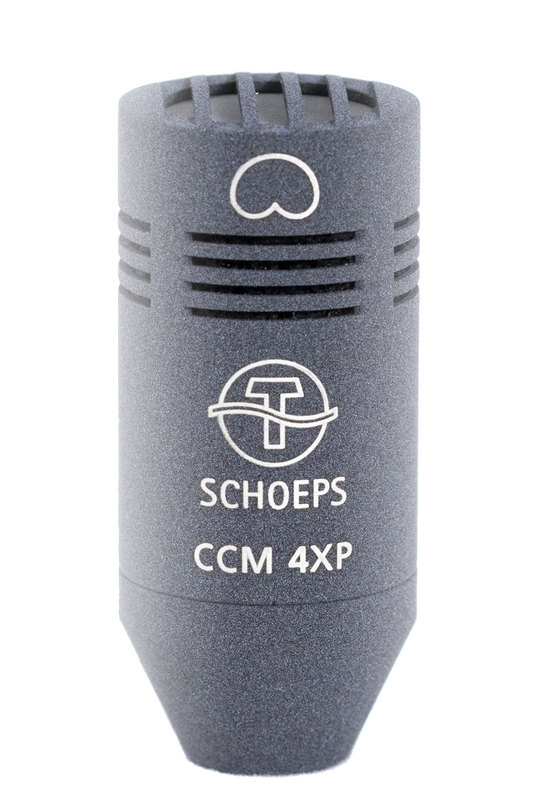

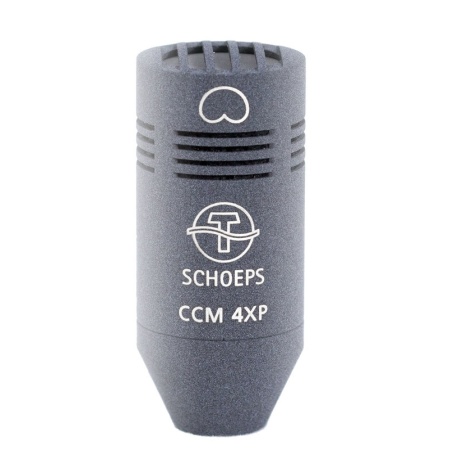

Schoeps CCM 4XP U Compact Microphone for close pickup, cardioid, permanently attached cable, incl. SGC and premium case
This type of microphone has a low-frequency rolloff to compensate for the low-frequency boost which occurs when close-miking.
- cardioid pattern
- for pickup of speech or music at close range (under 10 cm)
- considerable attenuation of low frequencies
Application
This microphone type is used primarily in voiceover and sound reinforcement applications, and wherever good speech audibility in a noisy environment is a prime requirement.
It is suited for the recording of music in exceptional cases only. When it is used at a distance of ca. 10 cm flat frequency response can be obtained.
Audio Samples
Specifications
| All CCMs |
| Current consumption with 12 V |
8 mA |
| Current consumption with 48 V |
4 mA |
| Impedance |
90 Ω |
| Minimum recommended load impedance |
600 Ω |
| Low-cut frequency |
20 Hz |
| Length (L version) |
without connector: 46 – 58 mm |
| Length (U version) |
46 – 58 mm |
| Diameter |
20 mm |
| Weight (U-version) |
33 g |
| Weight (L-version) |
43 g |
| Surface finish |
matte gray |
For further specifications see those of the corresponding capsule:
| MK 4XP |
| Frequency range |
80 Hz - 20 kHz |
| Sensitivity |
12 mV/Pa |
| Equivalent noise level (A-weighted) |
15 dB-A |
| Equivalent noise level (CCIR) |
25 dB |
| Signal-to-noise ratio (A-weighted) |
79 dB-A |
| Maximum sound pressure level at 0.5% THD |
132 dB-SPL |
Graphics
Low-frequency response curves of the two capsule types (P and XP) compared to the standard MK 4 (measured at a 60 cm equivalent distance).
