Schoeps KLY 250/0 I Y-Cable, 2*Lemo to Binder
This cable allows two CCM-L compact microphones to be connected to a single two-channel output cable. The standard length for the KLY's two microphone input leads is 250 mm.
- Y-cable for two CCM-L compact microphones
Overview

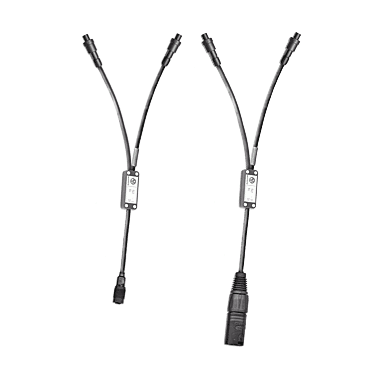

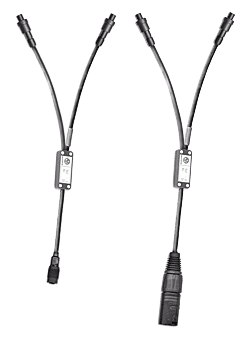

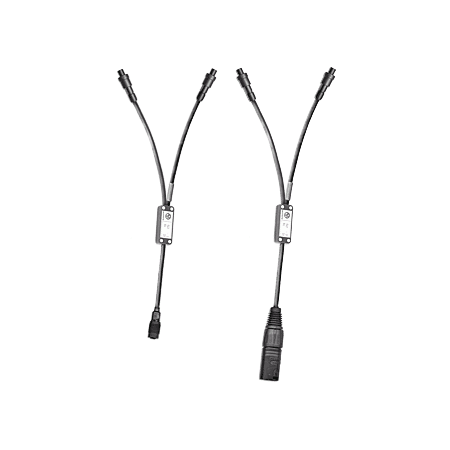

Standard lengths for the output cable with XLR-5M plug attached are 10 cm (KLY 250/0 SU) and 5 m (KLY 250/5 SU); other lengths can be specially ordered.
These cables are also available with miniature Binder output connectors in case the XLR should be too large or heavy for special applications; they are then known as the KLY 250/0 I and KLY 250/5 I.
The KLY 250/0 I results in a particularly compact unit.

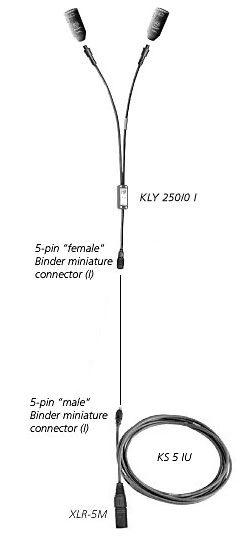

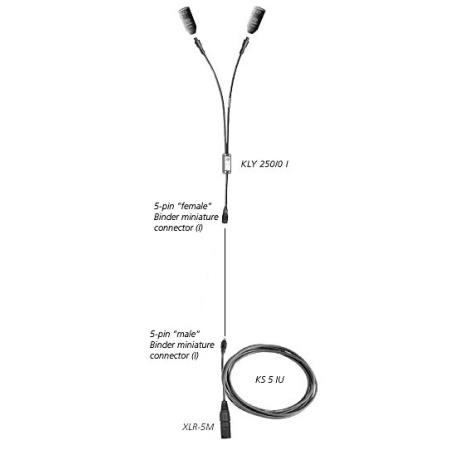

Extension cables are available in a variety of lengths -either XLR-5F to XLR-5M (e.g. KS 5 U, 5 m long) or miniature Binder to XLR-5M (e.g. KS 5 IU, 5 m long).
Specifications
| KLY 250/0 I |
| Length |
inputs: 250 mm |
| Length |
output: 10 cm |
| Input |
Lemo |
| Output |
Binder miniature connector |
| Extension cable |
KS 5 I, 5 m long
KS 5 IU, 5 m long (is also adapter from Binder to XLR-5) |
| KLY 250/5 I |
| Length |
output: 5 m |
