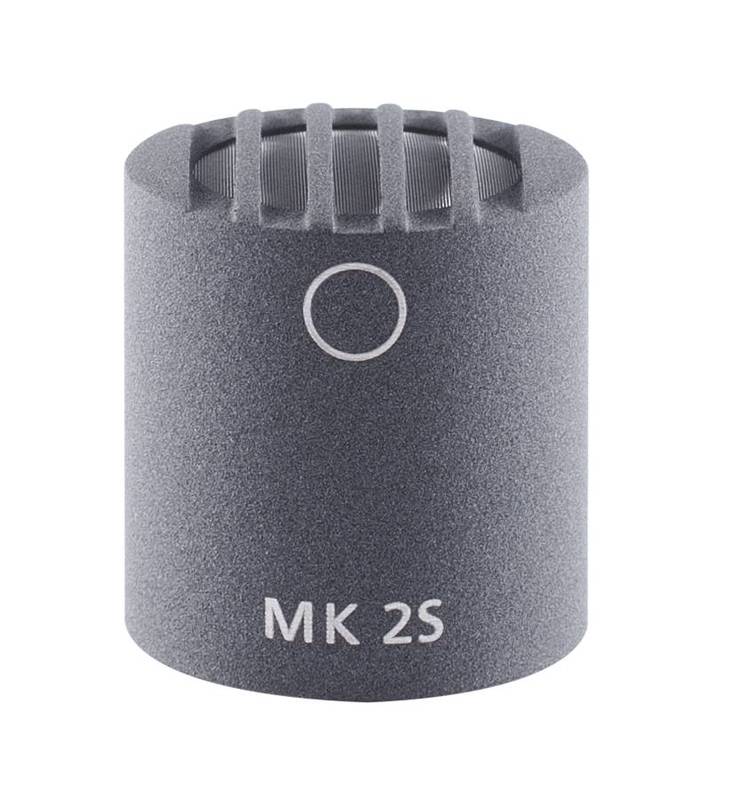

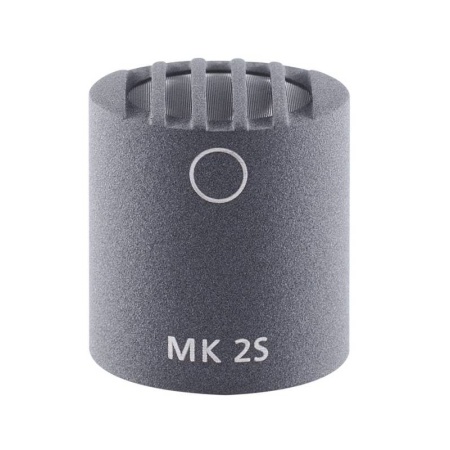

Schoeps MK 2S Microphone capsule, omni
The MK 2S exhibits a slight high-frequency emphasis for frontal sound incidence, with only a slight rolloff of high frequencies off axis and in the reverberant sound field.
This frequency response characteristic falls between that of the MK 2 and the MK 3, making the capsule suitable for a wide range of applications.
- omnidirectional pattern
- slight high-frequency rise to compensate for losses at moderate recording distances
- for a very wide range of recording applications
- often preferred for “spaced microphone” stereo pickup and “Decca Tree” arrangements
Although our normal production tolerances are very close, we can deliver specially matched capsule pairs for a small extra charge.
Application
The MK 2S has proven particularly useful in two- and three-microphone stereo arrays, where its placement near the reverberation radius of the sound field presents a sonically balanced pickup favored by many recording engineers. This model has become our most popular pressure transducer.
For spaced microphone (“A/B”) stereo recording and especially the “Decca Tree” method, KA 40 accessory spheres are recommended; please see page 114.
Specifications
| MK 2S |
| Frequency range |
20 Hz - 20 kHz |
| Sensitivity |
12 mV/Pa |
| Equivalent noise level (A-weighted) |
12 dB-A |
| Equivalent noise level (CCIR) |
24 dB |
| Signal-to-noise ratio (A-weighted) |
82 dB-A |
| Maximum sound pressure level at 0.5% THD |
132 dB-SPL |
| Length |
22 mm |
| Diameter |
20 mm |
| Weight |
17 g |
| Surface finish |
matte gray (g) or nickel (ni) |
Graphics

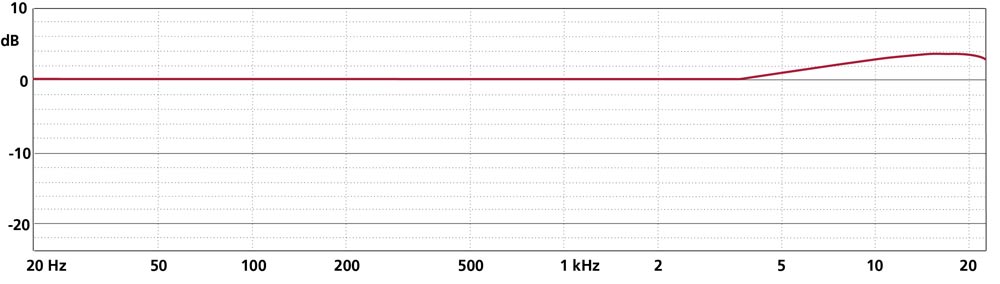

Frequency response MK 2S + CMC 6 and CCM 2S
