Schoeps MSTC 74 U
ORTF STEREO MICROPHONE
The MSTC is particularly impressive in that it usually also gives very good results without spot microphones. In addition, its placement is relatively unimportant, making it suitable for the rather inexperienced or hasty user. Set-up is quick and easy, because only a single stand and cable are required and the capsule distance and the offset angle of the capsules to each other don’t need be adjusted.

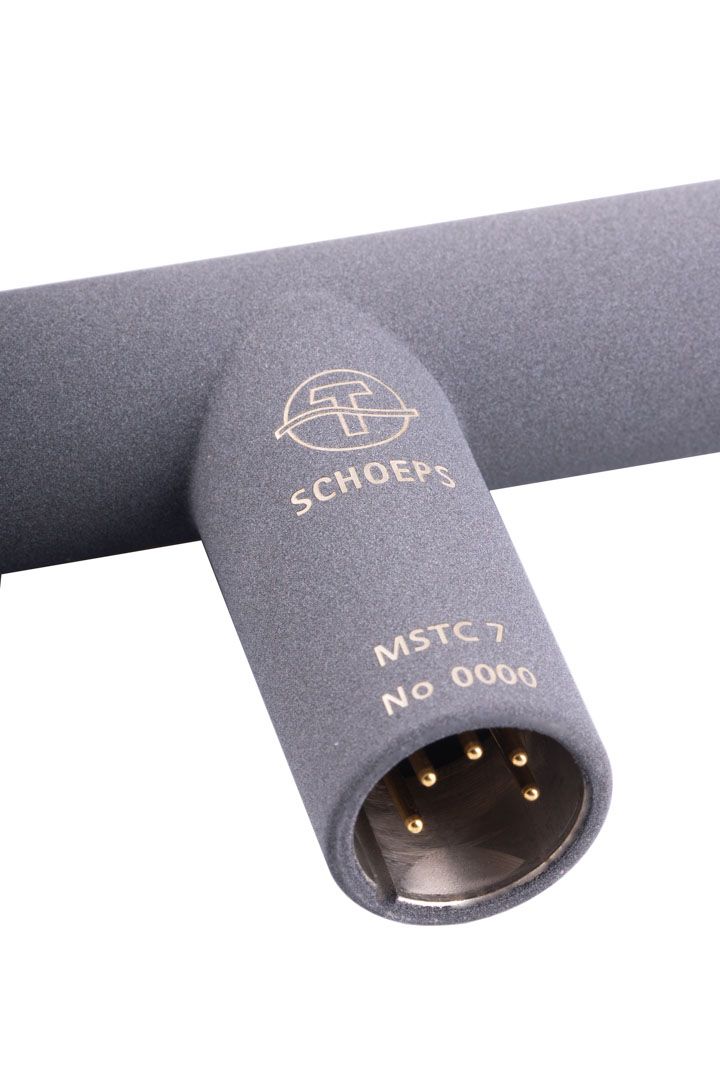

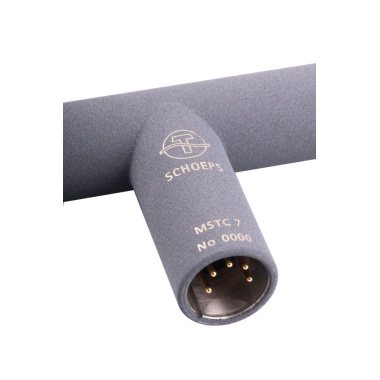

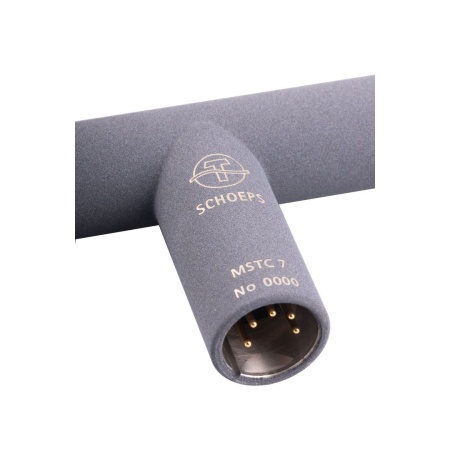

At the output of the MSTC 74 is an XLR-5M plug to which e.g. the stereophonic cable KS 5 U, or the breakout AK SU/2U is connected.
Main Features
- New 2022 model
- Stereo microphone for recording using the ORTF technique
- excellent stereophonic characteristics: very good localization, very good spatial quality
- preferred use as a main microphone for recording ensembles and choirs or as a stereophonic spot microphone
The MSTC is one of SCHOEPS' bestsellers. Its compact elegance and excellent spatial quality make it a classic in the sound engineer’s standard portfolio.

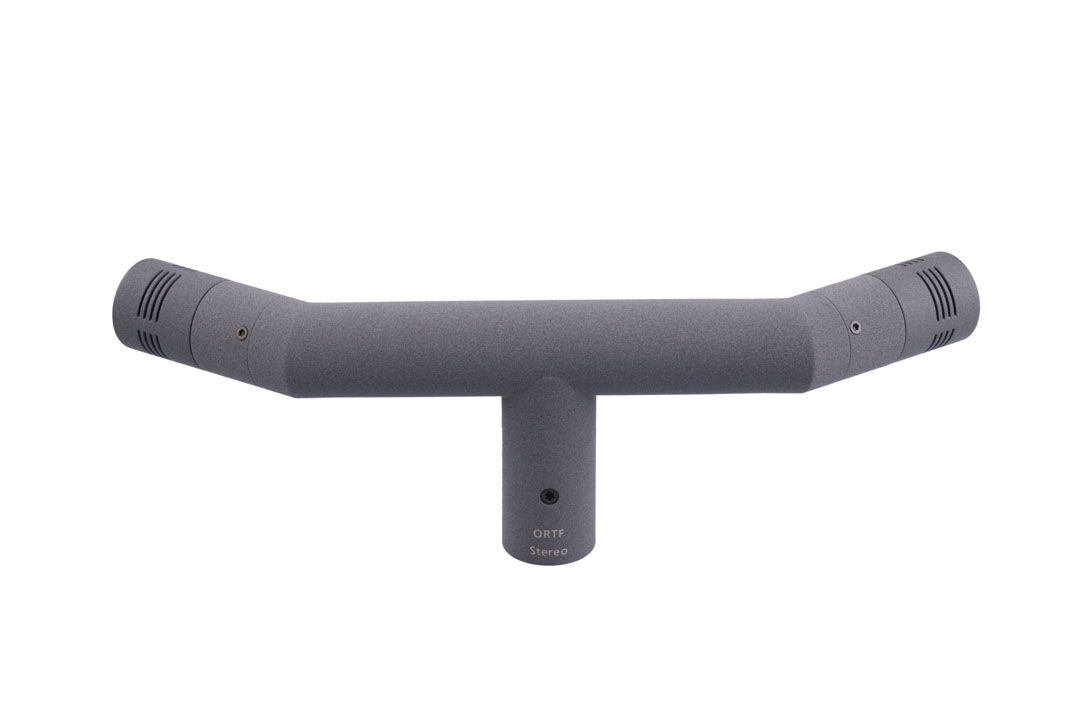

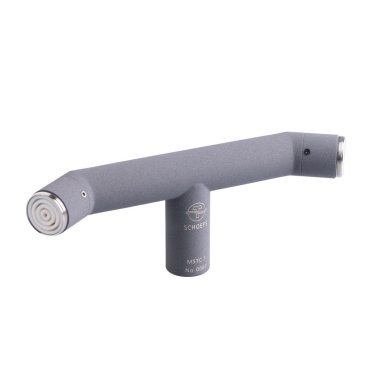

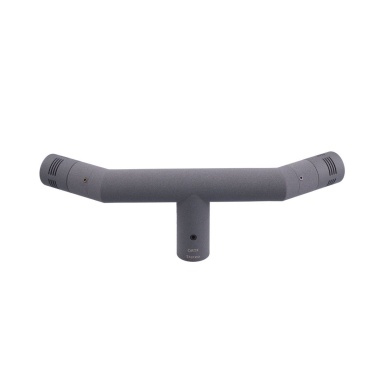

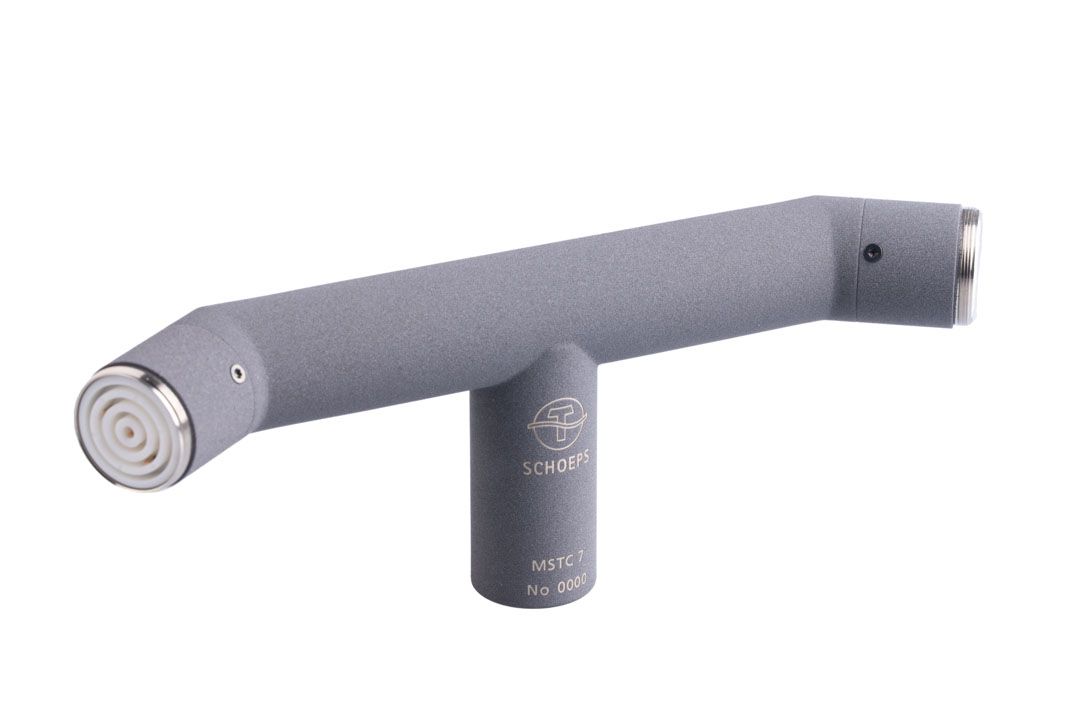

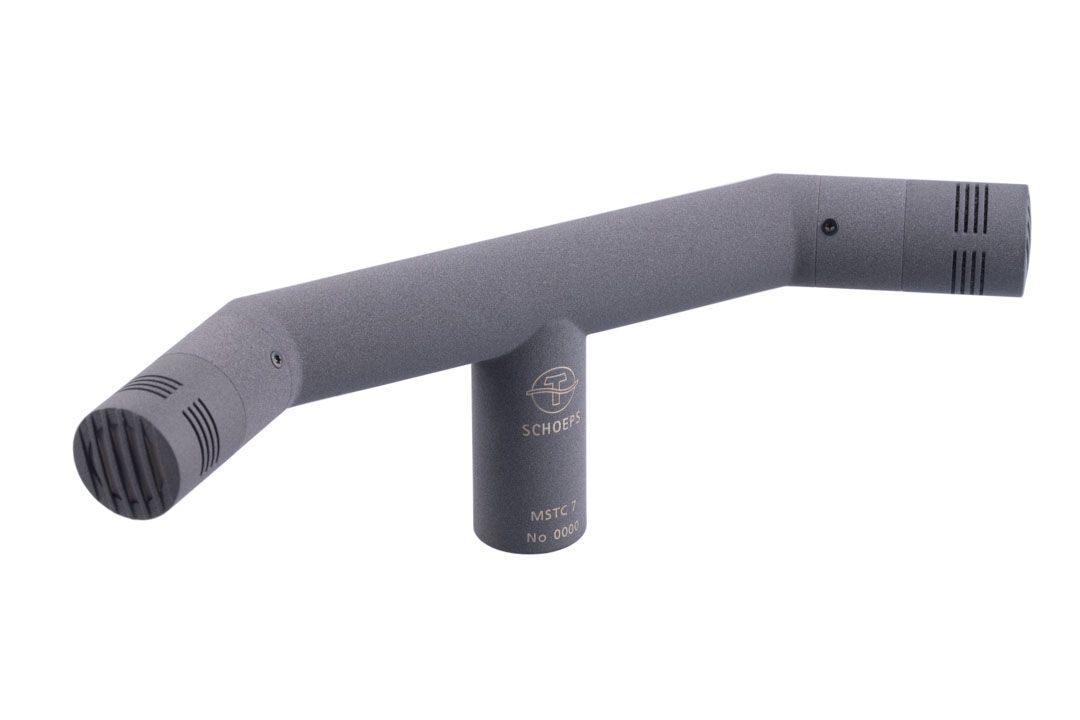

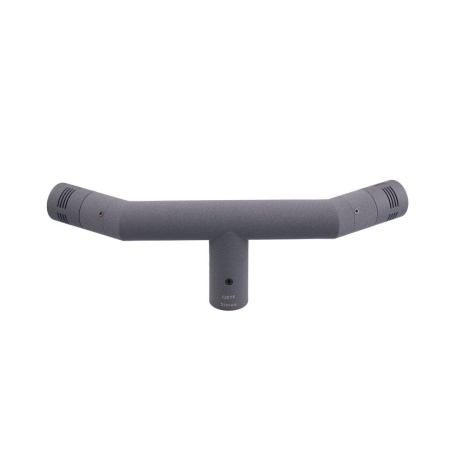

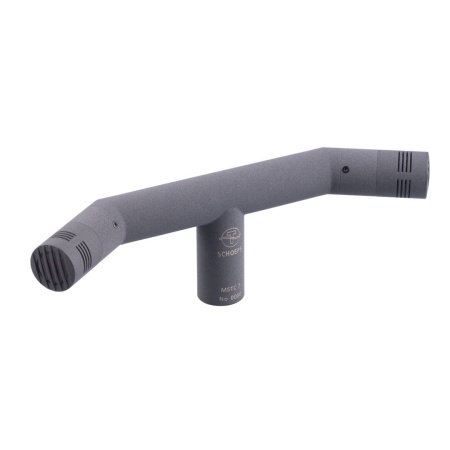

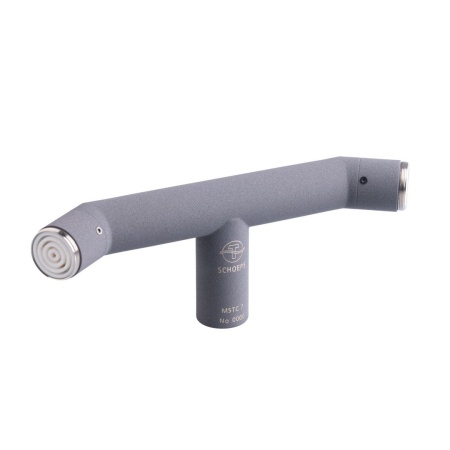

This microphone consists of a T-shaped two-channel microphone amplifier, which two paired MK 4 cardioid capsules are screwed onto. They are arranged at a distance of 170 mm at an angle of 110° to each other, as required for the ORTF method.
Practice
The MSTC 7 (No. 132014) comes with:
- No. 232014, MSTC 7, stereo microphone
- No. 161105, SG 20, stand clamp
- No. 152202, AK SU/2U, breakout cable
The MSTC 74 (No. 139901) also includes:
- 2 * No. 231015 MK 4, matched
For outdoor use, a wind basket, e.g. the CINELA Albert or a CINELA OSIX with single windshields W 5 D or W 20 is recommended.
Alternatively, the ORTF Outdoor Set can be used which employs single CCM microphones in an ORTF arrangement.
Tech Specs
| Pickup pattern |
Cardioid (2× MK 4)
|
| Frequency range |
40 Hz - 26 kHz
|
| Sensitivity |
-36,5 dB (V/Pa), 15 mV/Pa
|
| Equivalent noise level (A-weighted) |
14 dB
|
| Equivalent noise level (CCIR) |
24 dB
|
| Signal-to-noise ratio (A-weighted) |
80 dB
|
| Maximum sound pressure level (THD < 0.5 %) |
131 dB-SPL
|
| Maximum output voltage |
1 V (0 dBV) with 1 kΩ load
|
| Low cut filter |
30 Hz, 6 dB/oct.
|
| Minimum recommended load impedance |
1 kΩ
|
| Output impedance |
35 Ω
|
| Maximum cable length |
> 300 m
|
| SCHOEPS RFI Shield |
-
|
| Powering standard / Valid range |
P48 / >24 V
P12 / >11 V
|
| Current consumption |
4 mA per channel
|
| Common mode rejection ratio (at 1 kHz) |
> 60 dB
|
| Output |
XLR-5M, analog, 2 channels
|
| Distance between the microphones |
17 cm
|
| Recording angle |
95°
|
| Weight |
232 g (with capsules)
|
| Surface finish |
matte gray (g) or custom color
|
| Stereophonic recording technique |
ORTF
|
