Schoeps TEF-H Flanged mounting adapter with internal shock mount for table mounting, 20mm, for heavy table tubes Schoeps

Name: Schoeps TEF-H Flanged mounting adapter with internal shock mount for table mounting, 20mm, for heavy table tubes
Brand: Schoeps
SKU: S161408
Price: 14440.00 HUF
Availability: InStock
Rating: 5 (2 reviews)

18 339 Ft
(14 440 Ft excl VAT)

–

brand: Schoeps
sku: S161408

availability:

Twitter

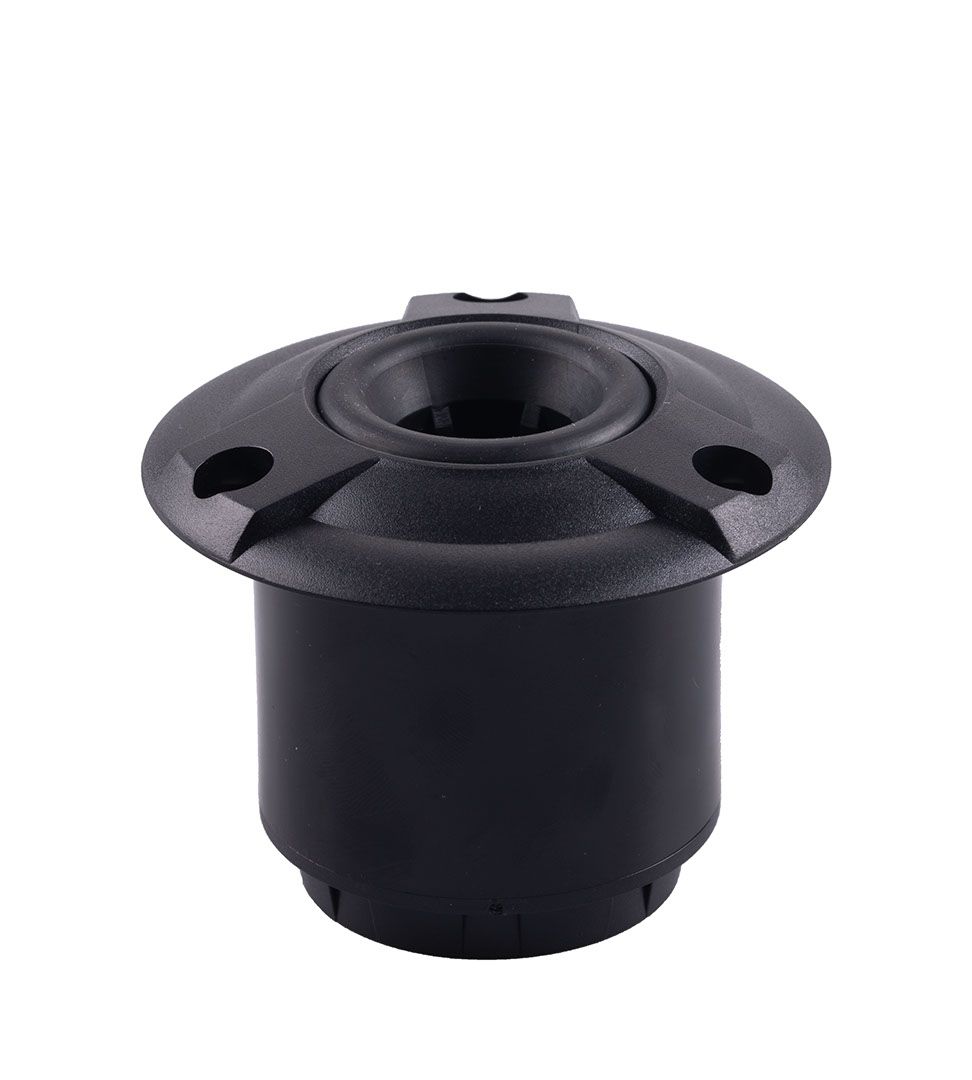

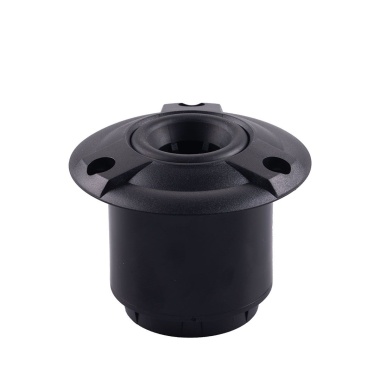

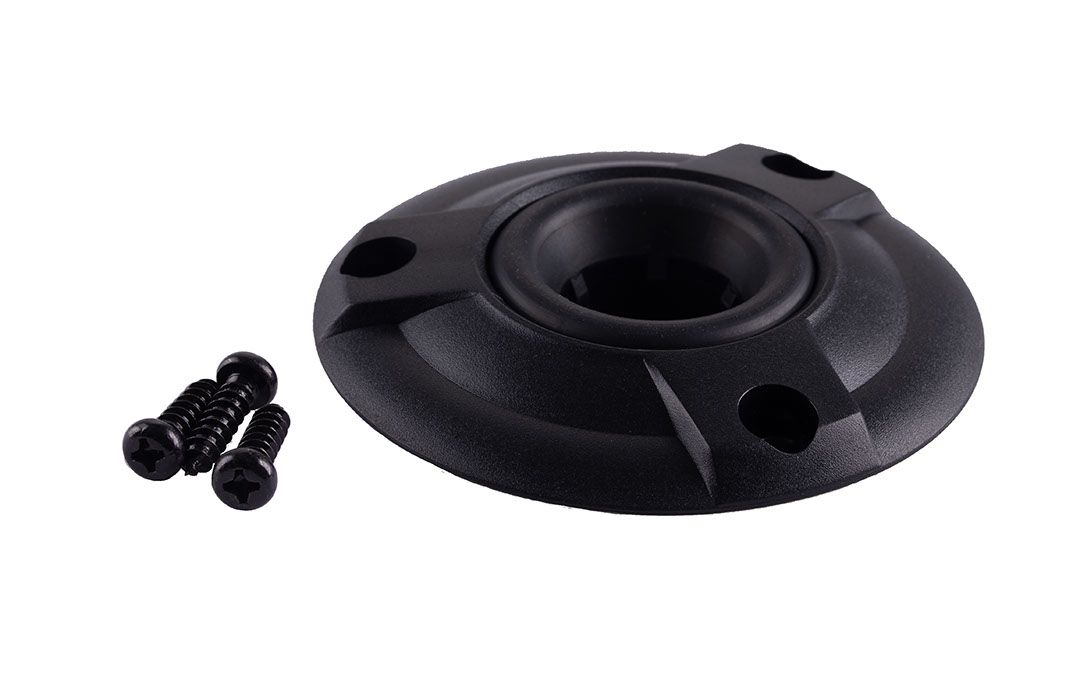

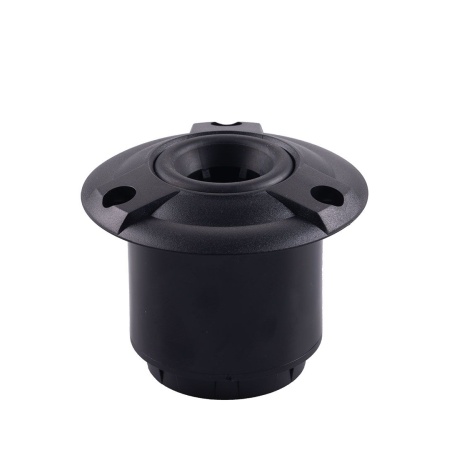

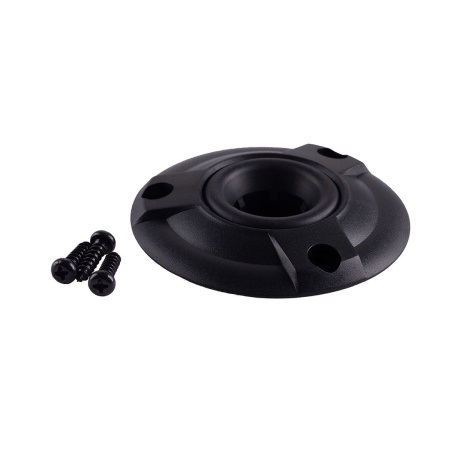

Tabletop mounting adapter for table stands
For diameter 20 mm (ST 20-3/8 cylinder or CMC amplifier)
For optimal decoupling of solid-borne noise, the TEF is available in different degrees of hardness to optimally decouple the microphone and keep it stable at the same time

Overview

The elastically mounted installation of table stands in the table places high demands on the equipment used: The suspension must not be too soft, otherwise the microphone is not stable. It must also not be too hard, otherwise the microphone picks up vibrations from the table as broadband interference.

The three versions of the TEF are used as follows:

#161406: TEF-S: Tabletop mounting adapter for light table stands with lengths <= 250 mm - without B 1 D or B 5 D
#161407: TEF-M: Tabletop mounting adapter for medium-heavy table stands with lengths <= 350 mm
#161408: TEF-H: Tabletop mounting adapter for heavy table stands with lengths <= 420 mm
