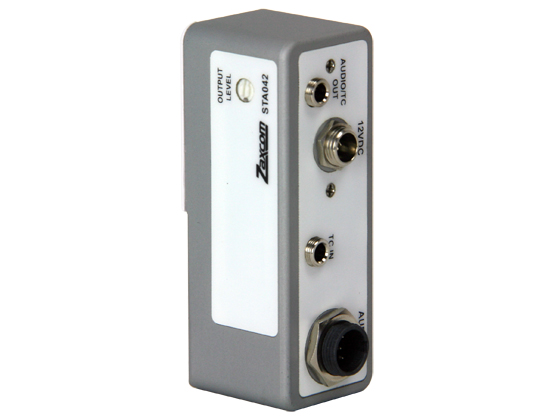

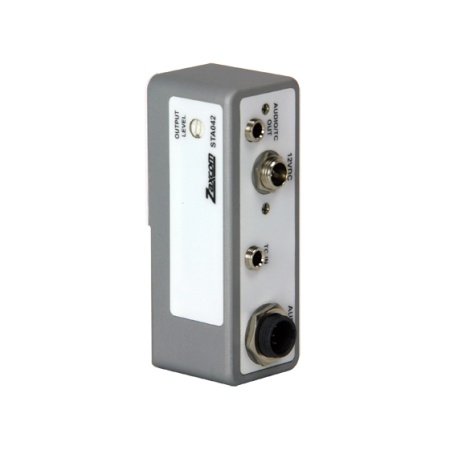

STA042 Digital Stereo Adaptor for the ZFR100
STA042 digital stereo adaptor has a sample rate converting input allowing any sample rate from 44.1 kHz to 48.048 kHz to be connected. The STA042 also has a dedicated time code input, enabling an exact match of audio recorded on the TRX and audio/video recorded on-camera. The new STA042 interface features an output that can be used either as an audio monitor for playback from the memory card or as a time code output to jam other devices. The STA042 includes an external power input for connection to an 8 to 18-volt external power source.
Main Benefits
- 2-Channel Digital Line-level Input
- Timecode Input
- Timecode / Audio Output
- External Power Input
Tech Specs
| AES Input Connector: |
TA-5M |
| Timecode Input Connector: |
Unbalanced 3.5mm Stereo Jack |
| Timecode Input: |
1 to 4 V P-P |
| Timecode / Audio Output Connector: |
Unbalanced 3.5mm Stereo Jack |
| Timecode / Audio Output: |
3 V P-P into 30O |
| Power Input Connector: |
Switchcraft L712 Jack |
| Power Input Range: |
9 to 18 VDC |
| Dynamic Range: |
120 dB |
| Size: |
1" x 0.8" x 3" (25 mm x 20 mm x 76 mm) |
| Weight: |
2.0 oz |
