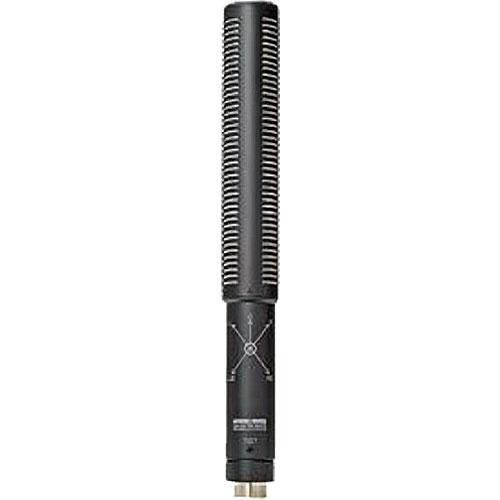

WMS-5 Double M-S surround microphone (with WSC-535/2.0)
The Sanken WMS-5 is a professional field microphone designed for five-channel surround capturing. Dual M-S stereo capsules are placed to maintain precise phase-coherence and accurate five-channel surround audio reproduction. Five discrete balanced XLR outputs send audio to separate recorder tracks, mixer channels, etc. M-S to left/right stereo matrix circuitry is built into the microphone. The WMS-5 delivers the audio quality and surround capturing flexibility that will prove ideal for feature film audio, broadcast audio, sound design recording and more.
Main Benefits
- Five Channel Surround
- Dual M-S Capsules
- Five Discrete Output Channels
- WSC-535/2.0 cable included
Description
Tech Specs
| Transducer |
DC Biased Condenser |
| Polar Pattern |
5-Channel Surround |
| Frequency Response |
50Hz to 20kHz |
| Dynamic Range (Typical) |
Not Specified By Manufacturer |
| Signal-to-Noise Ratio |
Mono - Less than 20dB (A)
Stereo - Less than 22dB (A)
Surround - Less than 22dB (A) |
| Maximum Input Sound Level |
More than 120dB |
| Power Requirements |
Universal Phantom Feeding DC48V +/- 4V (per channel) |
| Output Impedance |
120 ohms +/- 30% |
| Output Connectors |
3-pin XLR x5 |
| Pad |
No |
| Low Frequency Roll-Off |
No |
| Dimensions (LxDiameter) |
9.25 x 1.09" (234.9 x 27.8mm) |
| Weight |
8.28 oz (235g) |
