IFB200 IFB audio, timecode & remote contorl transceiver
The IFB200 can be used as either a transmitter or receiver. As a transmitter, it sends IFB audio, timecode and remote control commands to our TRX digital recording wireless transmitters and ERX receivers. It can also be used to monitor audio from a QRX or any other ZaxNet transmitter. The signals are carried on a single RF channel over a 2.4 GHz signal and can be used license-free in almost every country with an IFB audio range of approximately 100 feet and an IFB timecode and remote control range of approximately 400 feet.
Description

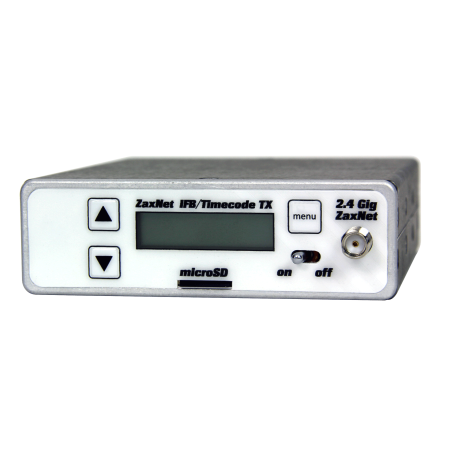

The front has a graphic LCD screen showing timecode and transmitter status. The IFB200 has a built-in 2-channel mixer for combining two separate channels into a mono transmission signal.
The IFB200 can be used in an array of applications – sound cart, sound bag, studio or on the side of your video camera.
Tech Specs
- IFB RF Transmitter
- RF Power Output: 75 mW
- RF Modulation: Digital Spread Spectrum
- RF Frequency Range: 2.403 to 2.475 GHz
- RF Frequency Step: 0.001 GHz (1 MHz)
- RF Bandwidth: 1 MHz
- Channel Separation: 2 MHz
- Antenna Connector: 50-ohm SMA Female
- Emission Designator: 180 KV2E
- FCC Part: CFR Title 47, Part 15
- IFB Audio Transmitter
- Dynamic Range: 103 dB
- Distortion: 0.01%
- Frequency Response: 20 Hz to 12 kHz
- Highpass Filter: Off or 30 to 220 Hz, Step: 10 (6 dB Per Octave)
- System Group Delay: 10 ms
- IFB Analog or Digital Audio Input
- Connector: TA-5M
- Type: Balanced
- Level: -10 dBu tp +4 dBu
- Impedance: 10 k Ω
- ADC Bit-depth: 24 bits
- ADC Sampling Rate: 48 kHz
- Timecode Input/Output
- Connector: BNC
- Input Level Range: 1 to 5V, P-P
- Output level 2V P-P
- Impedance: 75 Ω
- Timecode Reader / Generator
- Clock Accuracy: 1.54 PPM (1 frame out in 6 hours)
- Timecode Type: SMPTE
- Timecode Frame Rates: 23.98, 24, 25, 29.97NDF, 29.97DF, 30NDF, 30DF
- Physical
- Weight: 7.3 oz
- Dimensions: 3.6″ x 3.23″ x 1.0″
- External Power: 8 to 18 VDC @ 180 mA
- Internal Power: N/A
- Display: Graphic LCD Panel
