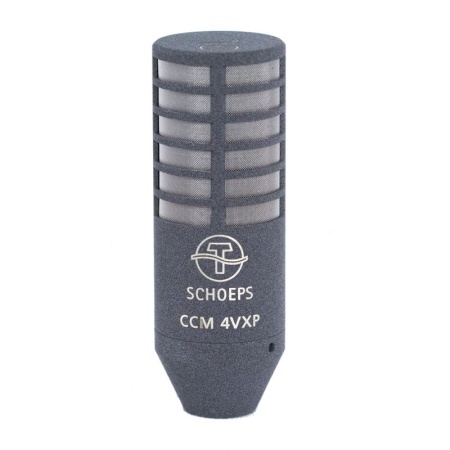

Schoeps CCM 4VXP L Compact Microphone for close pickup, side addressed, incl. SGC, K5LU, wooden box
This cardioid microphone, with its main axis along its side, improves speech intelligibility in very loud environments. It is designed for the very closest speech pickup, i.e. directly in front of the speaker’s mouth. Its low-frequency rolloff is compensated by proximity effect. Thus it has (up to the point of its high-frequency emphasis) a flat frequency response for the speaker’s voice, while showing a rolloff at low frequencies for all sound that originates from a greater distance. As a result, background sounds are picked up less strongly than the person speaking.
- cardioid for lateral pickup
- for pickup of speech or music at close range (under 10 cm)
- considerable attenuation of low frequencies
Audio Samples
Specifications
| All CCMs |
| Current consumption with 12 V |
8 mA |
| Current consumption with 48 V |
4 mA |
| Impedance |
90 Ω |
| Minimum recommended load impedance |
600 Ω |
| Low-cut frequency |
20 Hz |
| Length (L version) |
without connector: 46 – 58 mm |
| Length (U version) |
46 – 58 mm |
| Diameter |
20 mm |
| Weight (U-version) |
33 g |
| Weight (L-version) |
43 g |
| Surface finish |
matte gray |
For further specifications see those of the corresponding capsule:
| MK 4VXS |
| Frequency range |
close pickup |
| Sensitivity |
10 mV/Pa |
| Equivalent noise level (A-weighted) |
14 dB-A |
| Equivalent noise level (CCIR) |
25 dB |
| Signal-to-noise ratio (A-weighted) |
80 dB-A |
| Maximum sound pressure level at 0.5% THD |
134 dB-SPL |
Graphics
Frequency response and polar diagram MK 4VXP + CMC 6 and CCM 4VXP
