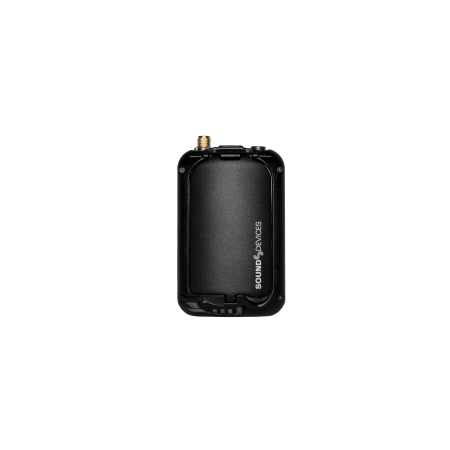

A20-Mini Digital Wireless Transmitter (470-1525MHz) SpectraBand - International Version

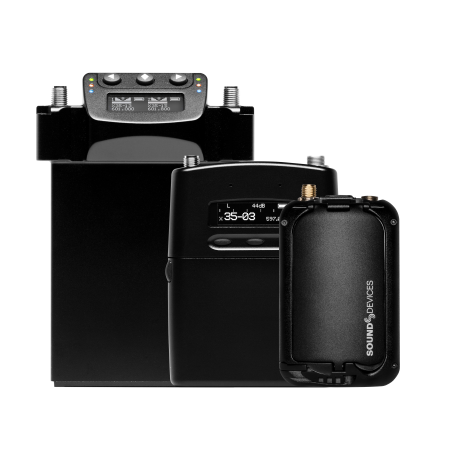

Sound Devices’ first miniature transmitter incorporates state-of-the-art features such as full remote control via the A20-Remote app, GainForward Architecture, internal 32-bit float recording, a worldwide tuning range of 470 MHz – 1525 MHz, and more. The A20-Mini is fully compatible with Sound Devices’ existing A10 Digital Wireless System.
Main Benefits
- Full remote control of the Mini via A20-Remote companion app. Control frequency and RF power, turn the Mini on and off, start and stop recording, mute the microphone, format the media, view the status of all your Minis, and more.
- GainForward Architecture: set the Mini’s gain levels via trim control (with an 8-Series) or at the A10-RX (other mixers).
- Full 10 Hz – 20 kHz audio bandwidth; 100% digital RF modulation and transmission. Same excellent range and audio quality as the A10-TX.
- Worldwide tuning range of 470 MHz – 1525 MHz.
- Built-in 32-bit float, 48 kHz recorder with 64 GB storage for over 80 hours of record time.
- Offload recorded WAV files via USB-C and optionally conform/convert with SD-Utility.

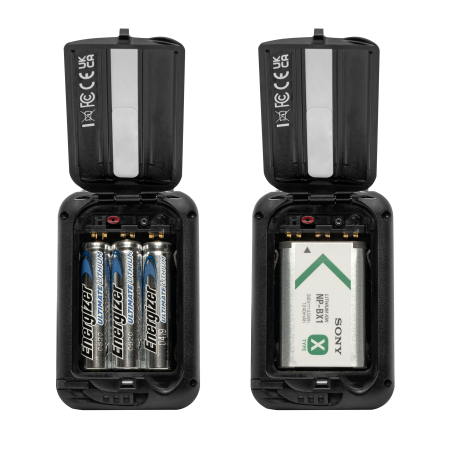

- Powering via AAA or NP-BX1 (Li-Ion) with built-in charging for NP-BX1 Li-Ion battery.
- Internal supercapacitor-powered timecode generator can be jammed via USB-C.

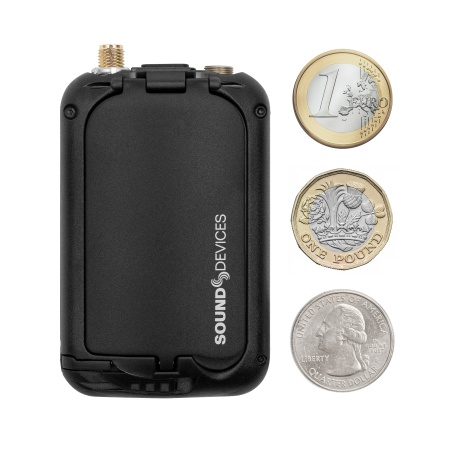

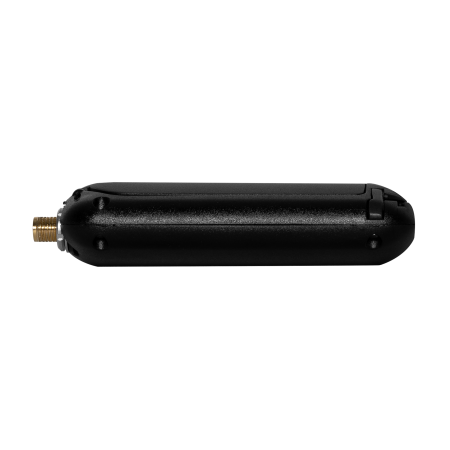

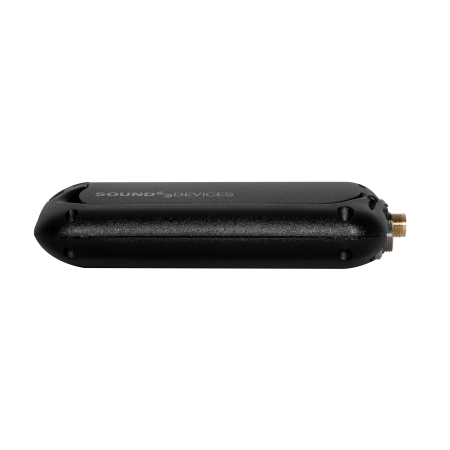

- Water-resistant with a rounded form factor.
Description
Tech Specs
| A20 Digital Wireless System Frequency Range |
470 - 1525 MHz |
| Transmitter Switching Bandwidth |
transmitters are tunable in 25 kHz steps |
| Modulation Mode |
Sound Devices proprietary digital RF modulation |
| Antennas |
UHF RF: SMA connector, removable; 2.4 GHz built-in |
| Audio Frequency Response |
10 Hz – 20 kHz, +/- 1 dB re 1 kHz
|
| RF Output Power |
Off, 2 mW, 10 mW, 20 mW, 40mW, selectable |
| Audio Input Type |

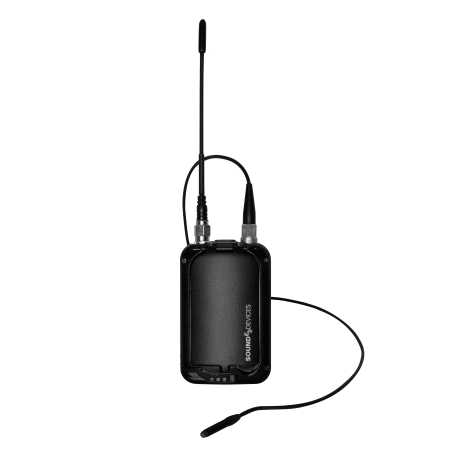

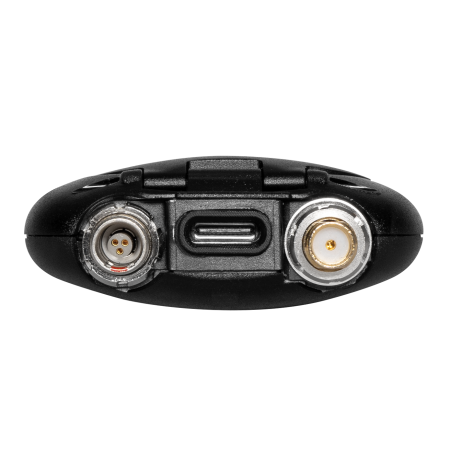

Lavalier Microphone via 3-pin LEMO, Pin-1 ground, Pin-2 5 V bias, Pin-3 audio/bias (8k ohm to 5 V) |
| Bias Power |
5 V |
| Input Impedance |
8k ohms |
| Input Clipping level |
+5 dBu |
| Dynamic Range |
130 dB min (A-weighted)
|
| Menu and Controls |
Power & Pair button protected inside battery compartment; A20-Remote, mobile device application of iOS, iPad, and Android
|
| Remote Control |
A20-Remote Android, iOS, and iPad app via Bluetooth 5.2 LE
|
| Recording Media |
Internal 64 GB; 10% over-provisioned for optimum performance |
| Recording File Format |
32 Bit Float, 48 kHz, Monophonic; Broadcast WAV (4 GB)
Simultaneous Record and Transmit mode is not available on A20-Mini units sold or operated in the United States of America.
|
| Timecode |
- Input via XL-TC-USBC-LEMO or XL-TC-USBC-BNC: 0.3 V – 3 V p-p (–17 dBu to +3 dBu), 20k ohm impedance
- Output via XL-TC-USBC-LEMO: 3 V p-p, 400 ohm impedance
|
| Timecode Clock |
0.2 ppm accuracy; Holds accurate clock for four hours while powered down with batteries inserted, holds for one hour without batteries via internal supercap; Auto Jams timecode from LTC source via USB-C connector, or from optional PowerStation-8M
|
| Timecode Frame Rates |
23.98, 24, 25, 29.97 DF, 29.97 ND, 30 DF, 30 ND; Frame rates are auto-detected from incoming source
|
| USB-C |
Mass Storage (USB-C): USB 2.0 high speed for file transfer; Powers A20-Mini
|
| Powering |
3x AAA batteries (Energizer Ultimate AAA Lithium primary batteries recommended), or Sony NP-BX1 rechargeable Li-Ion; Built-in Li-Ion charger via USB-C (7.5 W or more needed); Sony NP-BX1 is rechargeable via optional PowerStation-8M.
|
| Environmental |
- Water Resistant
- Operating: -20° C to 60° C, 0 to 90% relative humidity (non-condensing)
- Storage: -40° C to 85° C
|
| Weight and Dimensions |
51 g (without batteries); 75.8 mm x 48 mm x 19 mm |
