A10-TX-A - Digital body-pack transmitter (470-548MHz) .. discontinued ..

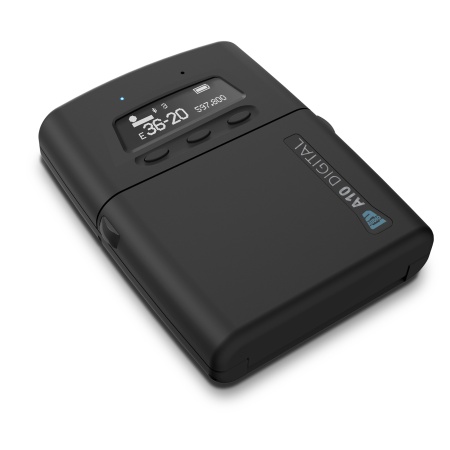

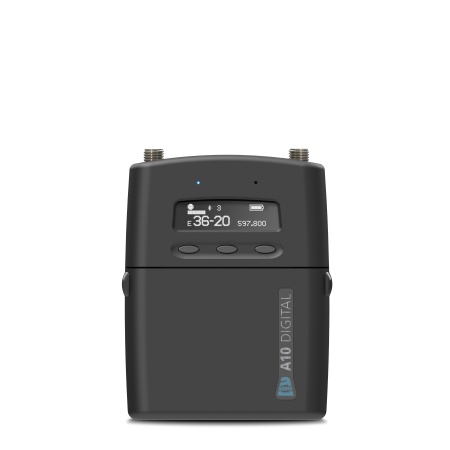

A10-TX-A - Digital Wireless Transmitter (470-548MHz)

The A10-TX transmitter is the heart of the A10 Digital Wireless System. And the core of the A10-TX transmitter is its low-noise, high-dynamic-range analog input. It accepting signals from low-level lavalier microphones to balanced line-level. The 3-pin LEMO input offers analogue limiters, 5 volt bias for lavalier microphones, as well as 12 and 48 volt phantom power for balanced microphones. A timecode-enabled recorder is integrated into the A10-TX. It records timecode-stamped files to removable microSD cards. After recording the proprietary .mic file requires conversion to WAV file using Mic2Wav utility software for macOS and Windows.

Main Benefits

• Low-noise, studio-grade balanced input for microphones and line level inputs with analogue limiter and 48 V phantom power
• Integrated digital recorder with ultra-accurate timecode generator
• Records to removable microSD cards
• Simultaneous wireless transmission and recording
• Remote controllable over Bluetooth® using the A10 Remote app for Android and iOS
