ACL 204 ext. ant. SMA-M

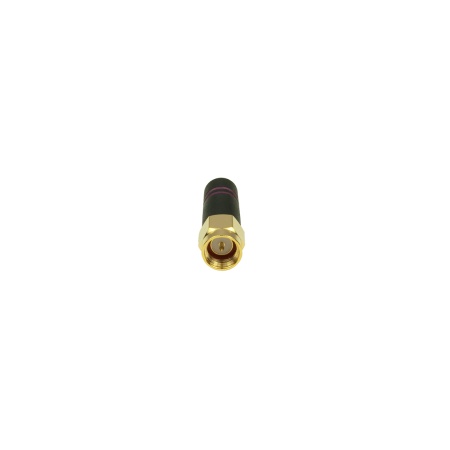

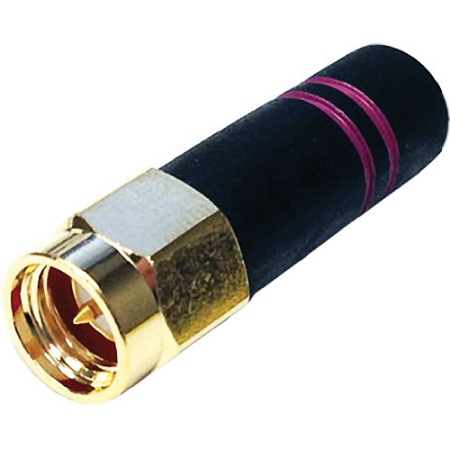

The ANT-2.4-SMA-M from Ambient Recording is a straight, helical whip antenna designed to work with all Lockit devices, and ideal for applications where cosmetic or functional requirements dictate a compact, aesthetically pleasing antenna package. This antenna is ruggedly constructed and able to withstand punishing environments. It attaches via an SMA connector.
Main Benefits:
- Compatible with All Lockit Devices
- Reduced-Height Helical Whip
- Fully Weatherized
- Flexible Main Shaft
- Omni-Directional Pattern
- Low VSWR
Compatibility
ACL 204
ACN-TL
ACN-ML
ACN-LS
ACN-LSW
Tech Specs
| Type |
Reduced-height helical whip |
| Connector |
SMA plug |
| Pattern |
Omnidirectional |
| Center Frequency |
2.45 GHz |
| Bandwidth |
300 MHz |
| Wavelength |
1/4 wave |
| Voltage Standing Wave Ratio (VSWR) |
< 2.0 typ. at center |
| Impedance |
50 Ohms |
| Operating Temperature Range |
-22 to 194° F / -30 to 90° C |
| Height |
1.06" / 27 mm |
