CL-9
Linear fader controller for the 788T Digital Recorder. Includes 100 mm linear faders, rotary trim control, adjustable single-band parametric eq, pan control, and solo per input. Rotary level controls for L, R, Aux 1, and Aux 2 tracks and outputs. Also offers two PL comm return inputs. Powered by 788T USB connection.
Main Benefits
- Eight 100mm Linear Faders
- Rotary Trim and EQ Controls
- Dedicated Talk back Mic Connections
- Fast Response
Description

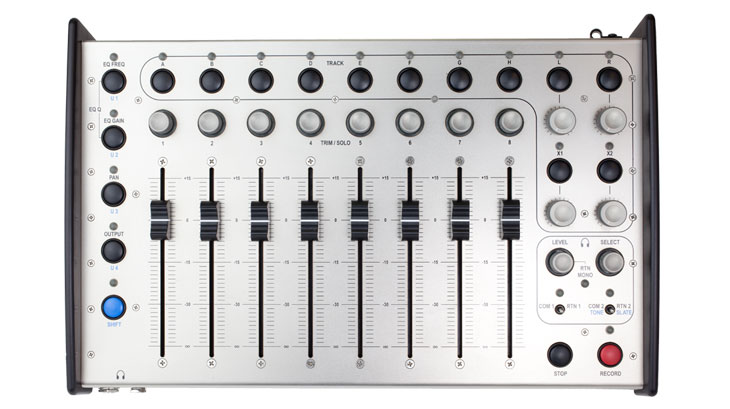

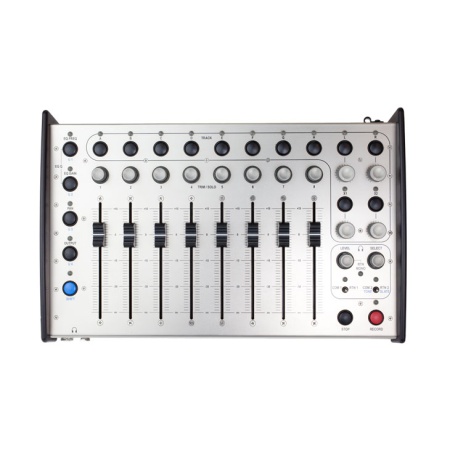

The Sound Devices CL-9 Linear Fader Controller features a small profile, 8 linear faders, rotary and push-button controls that establishes a comfortable recording and mixing surface when used with the 788T digital recorder. The USB powered CL-9 features dedicated connections for talk-back and talent / engineer communication, controllers for accessing the 788T's EQ and dynamics processing DSP, low latency operation and more.
Tech Specs
| Connections |
Balanced Line level XLR Inputs (40k ohm) x2 1/4" TRS Phone Headphone Input (10k ohm) 1/4" TRS and 1/8" (3.5mm) Mini Headphone Outputs 1/4" TRS Phone Headphone Pass-Through (100 ohm) USB Bus to 788T |
| Frequency Response |
20Hz to 20kHz +/- 1dB @ 1kHz |
| Metering |
Sunlight-Viewable LED Metering PPM, VU or Combination Level Metering Multi-color Backlit LCD Signal Present, Peak and Limiting LEDS |
| Power |
USB Bus Powered from 788T 200mA @ 5V Typical |
| Construction |
Aluminum and Stainless Steel Chassis |
| Dimensions |
2.75 x 13.75 x 8.75" (7 x 34.5 x 22.5cm) |
| Weight |
4 lb 11 oz (2.4kg) |
