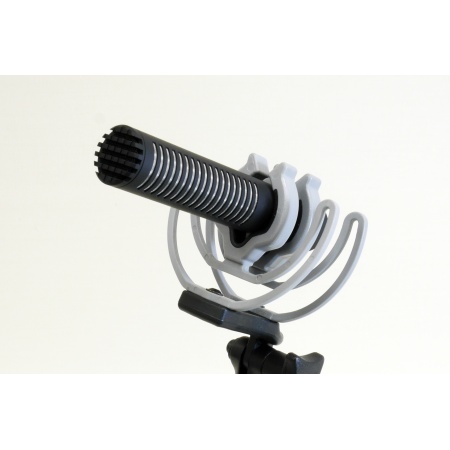

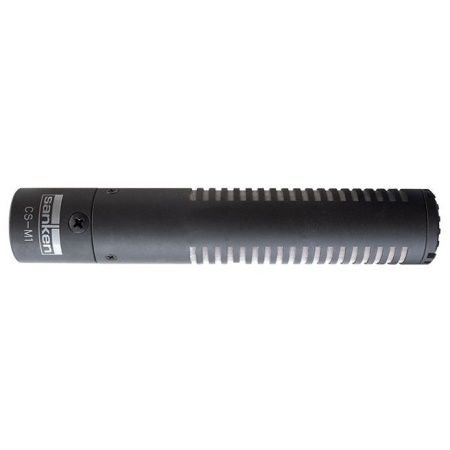

SANKEN CS-M1 Short Shotgun Microphone
Feature
・Ultra-short body length (103mm) and light weight (55g).
・Preserving sharp directivity and clear sound.
・Perfect solution, especially for cameras with short lens.
・Ideal for Boompole operation, recording in drama studio etc.
Specifications
| Directivity |
Super Cardioid / Lobar |
|---|
| Transducer |
Back electret condenser
|
|---|
| Frequency range |
70Hz～20kHz |
|---|
Sensitivity
(nominal at 1kHz) |
79mV/Pa (-22dB,0dB=1V/Pa) |
|---|
Equivalent noise level
(A-weighted) |
16dB-A |
|---|
| Max SPL (1% THD) |
137dB SPL |
|---|
Output impedance
at 1KHz |
140ohms |
|---|
| Powering |
+48V±4V U.P.F |
|---|
| Current consumption |
4mA |
|---|
| Weight |
55g |
|---|
| Dimensions |
103mm x 19mm(diameter) |
|---|
| Surface finish |
matte black |
|---|
| Connector |
XLR-3M |
|---|
Included Accessories
| Included Accessories01 |
Urethane wind screen |
|---|
| Included Accessories02 |
Measurement data |
|---|
| Included Accessories03 |
Instruction manual |
|---|
| Included Accessories04 |
Warranty card |
|---|
| Included Accessories05 |
Vinyl case |
|---|
Graphics
Frequency Response
Polar Pattern
Optional Accessories
 |
|
| Trade name |
HG-1 |
|---|
| Name |
Handgrip part only |
|---|
| Use |
CUW-180, WMS-5, CS-1e, CS-M1 |
|---|
|
 |
|
| Trade name |
GS-M1 |
|---|
| Name |
Suspension |
|---|
| Use |
for CS-M1 |
|---|
|
 |
|
| Trade name |
WSJ-M1 |
|---|
| Name |
Windjammer for WS-M1 |
|---|
| Use |
for CS-M1 CMS-50 |
|---|
|
 |
|
| Trade name |
WS-M1 |
|---|
| Name |
Cage windshield |
|---|
| Use |
for CS-M1 , CMS-50 |
|---|
|
 |
|
| Trade name |
WJ-M1 |
|---|
| Name |
Windjammer |
|---|
| Use |
for CS-M1 , CMS-50 |
|---|
|
 |
|
| Trade name |
WM-M1 |
|---|
| Name |
Urethane windscreen |
|---|
| Use |
for CS-M1 |
|---|
|
