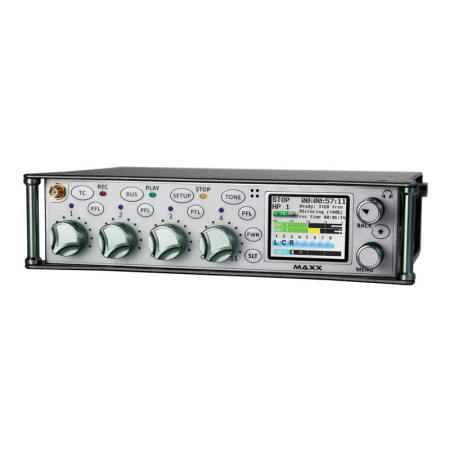

Maxx 2-channel transmitter w/timecode option
The Maxx 2-Channel Transmitter & Timecode Option enables the Maxx to transmit two channels of audio and SMTPE timecode to any Zaxcom ENG receiver. (The QRX100 requires the QIFB option installed for time code reception.)
Main Benefits
- Transmits two channels of audio and SMTPE timecode to any Zaxcom ENG receiver
- Enable or disable option while using Maxx
- Set to transmit in two modes:
MONO - Maxx will transmit one output bus
STEREO -Maxx will transmit both output busses
- RF Power output at 100mW
Description
This option can be disabled or enabled from the Maxx and can be set to transmit in two modes:
- MONO - Maxx will transmit one output bus
- STEREO -Maxx will transmit both output busses
RF Power output at 100mW.
Requires optional AES input for Maxx. Installation is recommended at time of Maxx purchase. Adding this option later requires a hardware upgrade and unit must be sent back to the factory.
Tech Specs
| Transmitter |
|
| Power Output |
10 / 50 / 100 mW – Software Selectable* |
| RF Modulation |
Proprietary Digital Method |
| RF Frequency Range |
518.0 to 542.0 MHz |
| RF Frequency Step |
100 KHz |
| RF Bandwidth |
200 KHz |
| Channel Separation |
500 KHz (700 KHz recommended) |
| Antenna Connector |
50 Ω SSMA Female |
| Emission Designator |
180 KV2E |
| FCC Part |
75.861 |
| |
|
| Timecode type |
SMPTE |
| Connector |
BNC |
| Input Voltage |
1-4VPP |
| Output Voltage |
2VPP |
| Clock Accuracy |
1.54 PPM (1 frame out in 6 hours) |
| Timecode Frame Rates |
23.98, 24, 25, 29.97NDF, 29.97DF, 30NDF, 30DF |
