RX200 Wide-Band 2-channel ENG receiver
The RX200 is a 200 MHz wide compact battery powered ENG receiver. It has a tunable tracking front end filter for receiving any frequency in any block from 20 through 27, or 512 – 698 MHz, while still filtering out unwanted RF.
Description
RX200 can output AES digital audio or analog audio at -35dB mic level, -10dB consumer level, or 0dB line level on a single TA5 connector. It's is also capable of receiving and outputting the embedded SMPTE time code on a BNC connector also on mic, line or consumer levels.

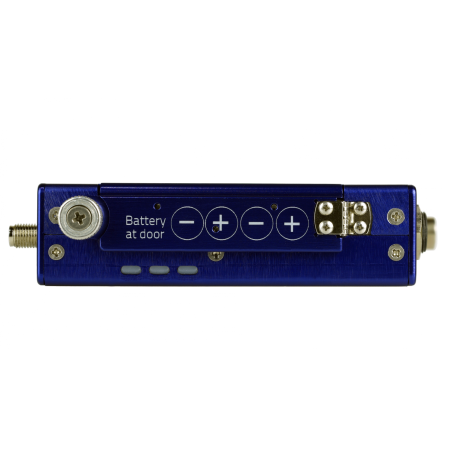

The RX200 / TRX900CL Camera Link combo is a great solution for sending two channels of 100% digital audio with embedded SMPTE timecode from bag to camera. Small and light-weight with Zaxcom's patented side-mounted LEDs, the RX200 is easy to mount on any camera from small format DSLR to a full size ENG rig.
Tech Specs
- Receiver
- Receiver RF Channels: 1
- Diversity method: antenna switching
- RF Modulation: proprietary digital method
- RF Frequency Range: 518 to 698 MHz
- RF Frequency Step: 100 KHz
- RF Signal Bandwidth: 200 KHz
- Channel Separation: 500 KHz (700 KHz recommended)
- Sensitivity: -114 dBm
- Antenna Connector: 50-ohm SMA female X 2
- Receiver Audio - Analog Output X 2
- Dynamic Range: 116 dB
- Distortion: 0.002%
- Frequency Range: 20Hz to 16kHz
- DAC Bit-depth: 24 bits
- Connector: TA-5M
- Audio Output: Active analog balanced
- Audio Output Level: -35dBm (mic), -10dBm (consumer) or 0dBm (line)
- Receiver Audio - Digital Output
- Signal Format: AES Balanced
- AES dynamic range: 123dB
- Frequency Range: 20Hz to 16kHz
- AES output: AES3 balanced at 96KHz

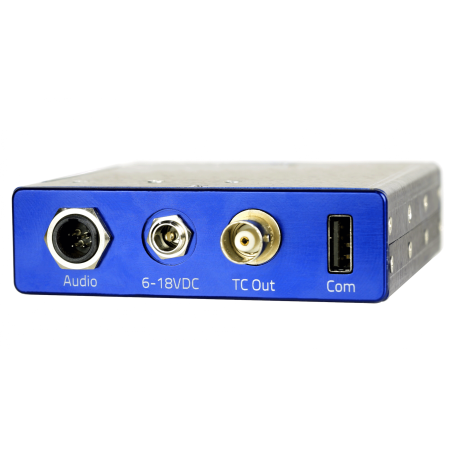

- Audio Output Connector: TA-5M
- Timecode
- Timecode output connector: BNC
- Timecode output level: .01VPP, .2VPP, .5VVP, .9VPP, 1.5VPP
- Time code output rate: 23.98, 24, 25, 29.97 ND, 29.97 DF, 30
- Power
- External Power: 6 to 18 VDC (140mA @ 12VDC)
- Power Connector: Switchcraft 760k

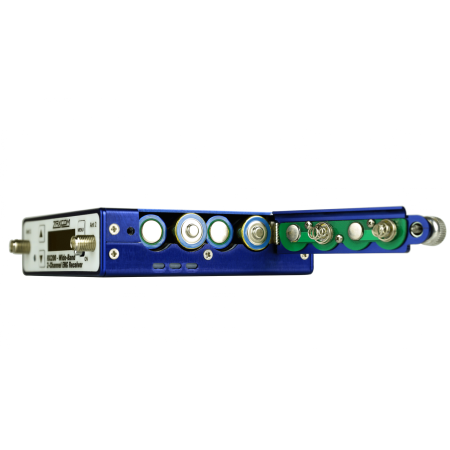

- Internal Power: 4 AA Batteries
- Li-Ion Battery Life: Up to 12 hours
- NiMH Battery Life: Up to 8.5 hours
- Alkaline Battery life: Up to 7 hours
- Misc.
- Serial Control Port: RS422
- Weight: 7.7 oz (without internal batteries)
- Dimensions: 1.0" x 3.5" x 3.5" (25mm x 89mm x 89mm)

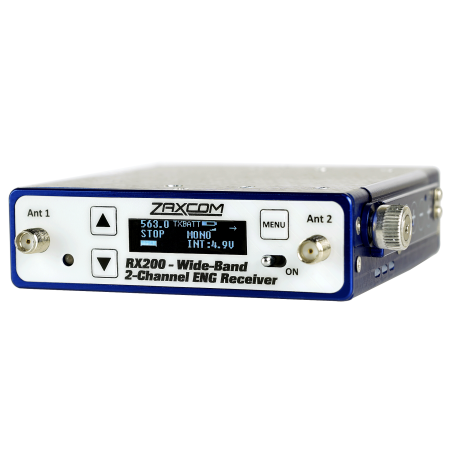

- Display: Graphic White OLED Panel
