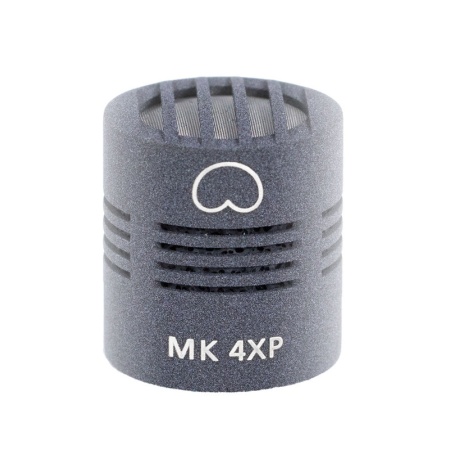

Schoeps MK 4XP Microphone Capsule for close pickup
This type of microphone has a low-frequency rolloff to compensate for the low-frequency boost which occurs when close-miking.
It is used primarily in voiceover and sound reinforcement applications, and wherever good speech audibility in a noisy environment is a prime requirement. It is suited for the recording of music in exceptional cases only. When it is used at a distance of ca. 10 cm flat frequency response can be obtained.
- cardioid pattern
- for pickup of speech or music at close range (under 10cm)
- considerable attenuation of low frequencies
Audio Samples
Specifications
| MK 4XP |
| Frequency range |
80 Hz - 20 kHz |
| Sensitivity |
12 mV/Pa |
| Equivalent noise level (A-weighted) |
15 dB-A |
| Equivalent noise level (CCIR) |
25 dB |
| Signal-to-noise ratio (A-weighted) |
79 dB-A |
| Maximum sound pressure level at 0.5% THD |
132 dB-SPL |
| Length |
22 mm |
| Diameter |
20 mm |
| Weight |
17 g |
| Surface finish |
matte gray (g) or nickel (ni) |
Graphics
Low-frequency response curves of the two capsule types (P and XP) compared to the standard MK 4 (measured at a 60 cm equivalent distance).
