Schoeps RS 420 L5U Tube with gooseneck element, 42cm, for CCM, Lemo with 5m cable .. discontinued ..

Schoeps RS 420 L5U Tube with gooseneck element, 42cm, for CCM, Lemo with 5m cable

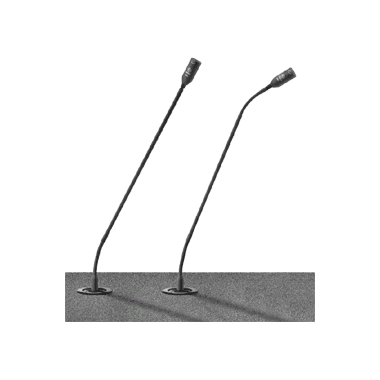

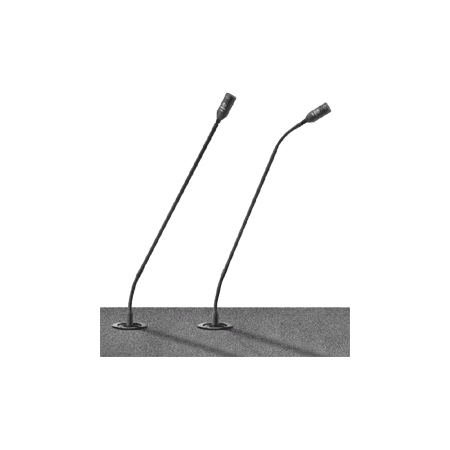

These goosenecks have a miniature Lemo plug for CCM _L compact microphones at the upper end and a short, rigid tube at the bottom. Above this tube the lower part is flexible. The SRS version has a second flexible part near the upper end of the tube, allowing the microphone's angle to be set.

• especially long (420 mm) gooseneck

Application

To isolate the microphone from solid-borne sound, due to the length of the gooseneck two AF 1 flanged mounting adapters with internal shock mount should be used, one above the other. These are held together by an ST 20-3/8 mounting cylinder of at least 61 mm length, with other lengths available on request.
The cylinder is to be ordered separately.

First, fasten the two AF 1s securely, one precisely above the other, to the lectern or table top. Then screw the gooseneck onto the 3/8'' threads at the end of the ST 20-3/8 cylinder. Push the XLR connector of the output cable through the AF 1s and press the cable into the groove in the side of the cylinder. Finally, insert the cylinder (with the output cable now attached) into the AF 1s.

Specifications
