Product Code: 040215
Suspension XX-Small MS is suitable for a Schoeps CCM MS pair in an AC Stereo Windshield. The Suspension is not supplied with a Connbox but does feature an adjustable Cable Clamp mounted on the moulded L Bracket.
Main Benefits:
- Patented Lyre suspensions provide complete isolation against handling noise whilst safely gripping the microphone
- Our new small and medium modular bars are now more durable and less prone to wear and tear.
- Comfortable pistol-grip handles allow handheld use, but also have a 3/8" boom adaptor in the base for quick transfer boom operation
Description

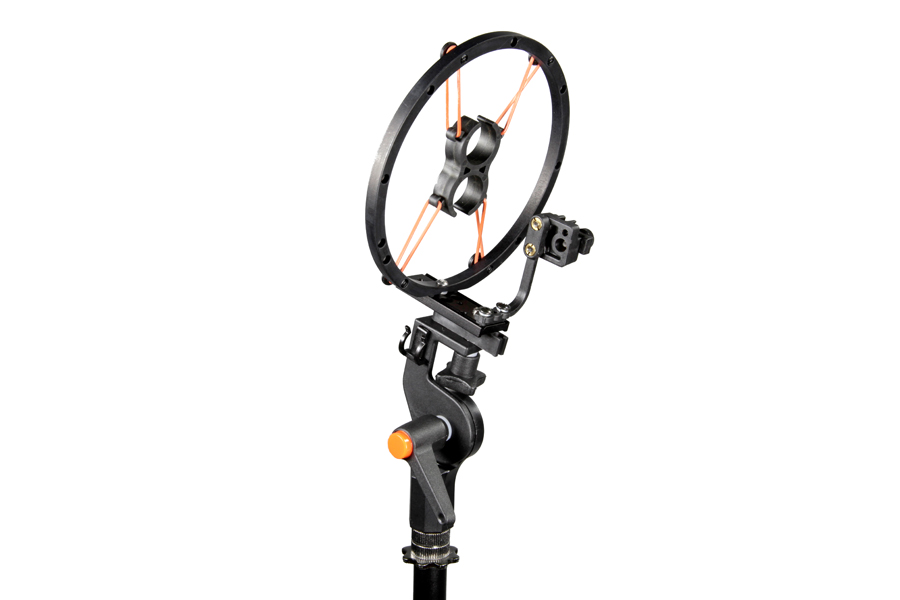

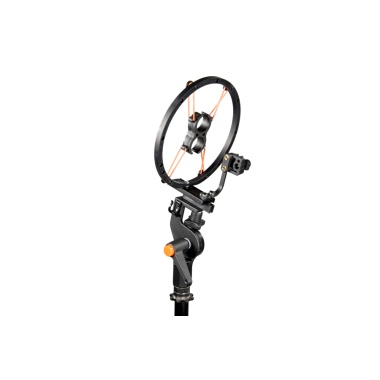

This Suspension setup is for an “M/S” (Mid-Side) stereo arrangement with two compact condenser microphones in an AC Windshield features the traditional metal hoop and rubber band arrangement with 20mm back-to-back clips to mount the microphones centrally within the windshield. This suspension is larger than the XX-Small MS mini which fits the smaller WS9 but offers less effective windshielding. This setup favours performance over compact size.
Tech Specs
Bar: XX- Small Half module metal bar (50mm)
Hoop: Metal 120mm diameter
L Bracket: Moulded Plastic
Cable Clamp: Adjustable plastic block with thumbscrew
O rings: Set of 4 (24.6 x 2.4)
Small Modular suspensions are suitable for shotgun microphones from approximately 120mm to 210mm in length, and diameters ranging from 19-25mm, 30mm or Sennheiser MKH microphones.
Medium Modular suspensions are suitable for shotgun microphones from approximately 210mm to 400mm in length, and diameters ranging from 19-25mm, 30mm or Sennheiser MKH microphones.
Large Modular suspensions are suitable for heavier shotgun microphones from approximately 400mm up to 540mm in length, and diameters ranging from 19-25mm, 30mm or Sennheiser MKH microphones.
Compatibility
Contents
Metal Hoop and bands ('O'rings)
20mm Back to Back Clips
1 x X Small (3/4 module) Bar
1 x Hex Head Key
