Product Code: 040248
Suspension XX-Small XY/MS is suitable for Schoeps CCM microphones and Sennheiser MKHC 8040/50 microphones in an AC Stereo Windshield. Half module bar, hoop & band suspension with XY/MS mount and 20mm clips. No Connbox included
Main Benefits:
- Patented Lyre suspensions provide complete isolation against handling noise whilst safely gripping the microphone
- Our new small and medium modular bars are now more durable and less prone to wear and tear.
- Comfortable pistol-grip handles allow handheld use, but also have a 3/8" boom adaptor in the base for quick transfer boom operation
Description

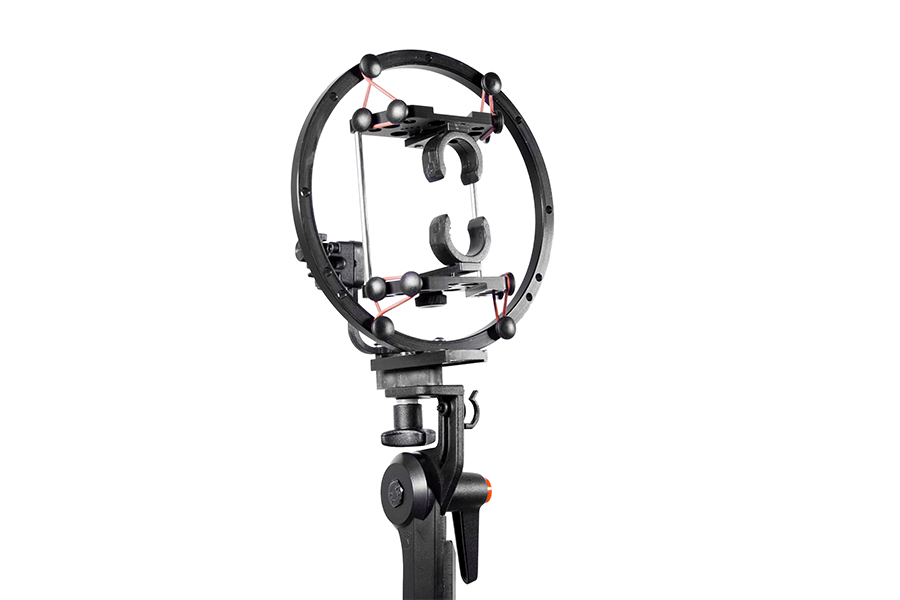

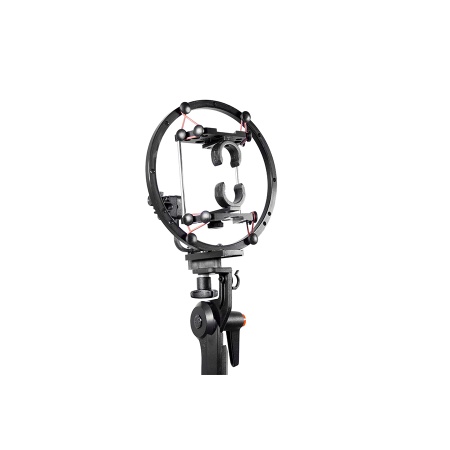

This Suspension setup for XY/MS stereo arrangement with two compact condenser microphones in an AC Windshield features the traditional metal hoop and rubber band arrangement with an adjustable XY/MS mount allowing four different angle positions for the microphones. The mount is suspended centrally in the hoop via the four rubber O rings.
Tech Specs
Bar: XX- Small Half module metal bar (50mm)
Hoop: Moulded Plastic 120mm diameter
L Bracket: Moulded Plastic
Cable Clamp: Adjustable plastic block with thumbscrew
O rings: Set of 4 (14.1)
XY/MS mount: Two steel rods join two mounting plates with angle markings and 20mm clips with location pins.
Connbox: No Connbox
Small Modular suspensions are suitable for shotgun microphones from approximately 120mm to 210mm in length, and diameters ranging from 19-25mm, 30mm or Sennheiser MKH microphones.
Medium Modular suspensions are suitable for shotgun microphones from approximately 210mm to 400mm in length, and diameters ranging from 19-25mm, 30mm or Sennheiser MKH microphones.
Large Modular suspensions are suitable for heavier shotgun microphones from approximately 400mm up to 540mm in length, and diameters ranging from 19-25mm, 30mm or Sennheiser MKH microphones.
Compatibility
Contents
'2 x Duo-Lyre 72 (19/34) + risers + spacers
x X Small (3/4 module) Bar
1 x Hex Head Key
