V-Mount Slot for receivers with UniSlot adaptor

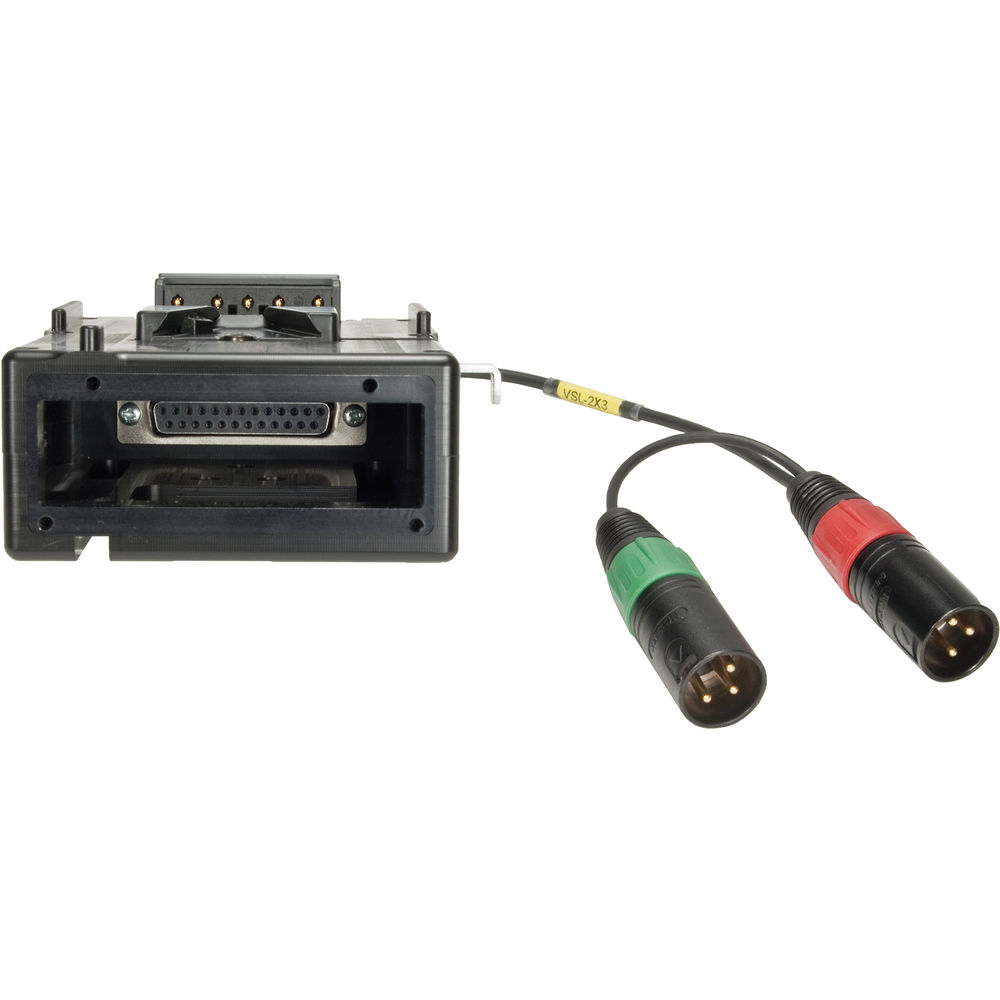

The VSLOT V-Mount Chassis for Slide-In Wireless Receivers by Ambient Recording is for cameras with a 25-pin D-sub, Unislot connector. It can be used to mount two wireless receivers between the camera and battery supply, allowing the power to be looped through to the camera, powering the audio receivers. It features a TA5M jack attached at the bottom, offering two balanced outputs for dual receivers. Dangling cables could become a relic of a day gone by, like bulky oversized power adapters and shoebox-sized cellular phones, thanks to the manufacturing of cables that are customized for almost every camera type. Thanks to the Ambient VSLOT every V-Mount equipped camera can be transformed into a compact ENG camera system. The VSLOT includes a standard VSL-2X3 adapter cable.
Main Benefits:
- For 25-Pin D-Sub Unislot Connector
- Mounts Receiver Between Camera, Battery
- Powers Wireless Receivers
- TA5M to Two Balanced Outputs Cables
- Adapter Cable is Included
Overview
Many professional video cameras are equipped with a V-Mount battery terminal. But only few also offer a possibility for slide-in radio receiver. The Ambient VSLOT chassis provides the solution: it is mounted between the camera and battery supply, the power is looped through to the camera, powering the receiver.
Here the common V-Mount system is being used, adaptation to other systems like e.g. Anton Bauer are possible with standard adaptor panels.

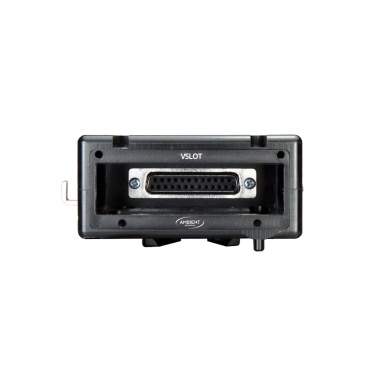

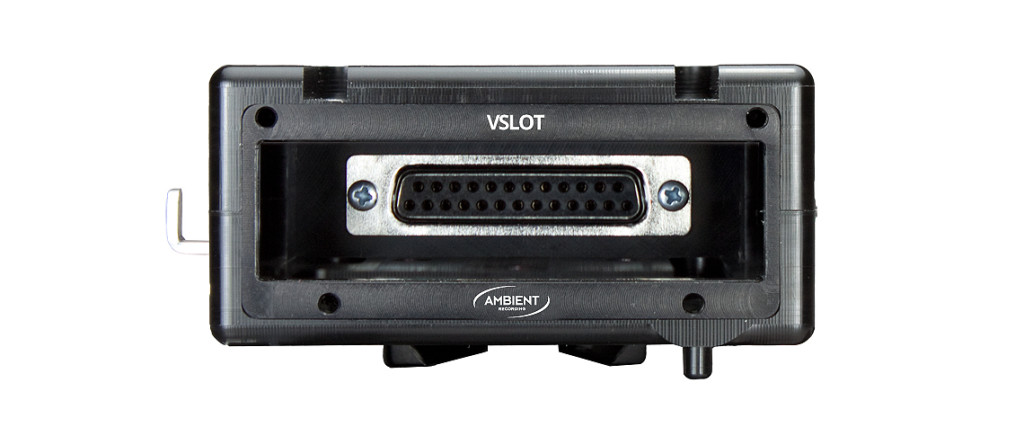

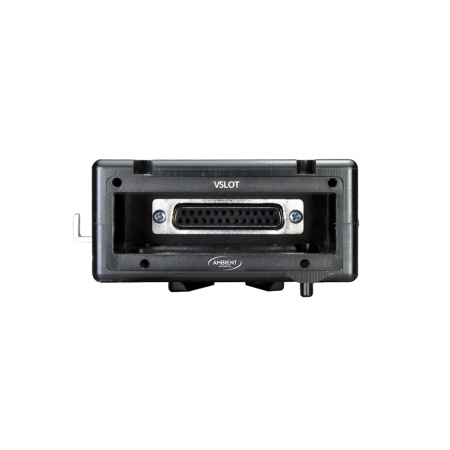

The VSLOT can be used with all receivers equipped with a Unislot connector (25-pin sub-D).
New modular construction for more flexibility
To offer highest flexibility, a TA5M and a Hirose jack are attached on a movable plate, offering two balanced outputs for dual receivers and an additional power outlet for external equipment. The connector plate can be mounted right and on the bottom of the chassis to adjust to different camera types.
This way dangling cables become a relic of the past .
Thanks to the Ambient VSLOT every V-Mount equipped camera can be transformed into a compact ENG camera system.

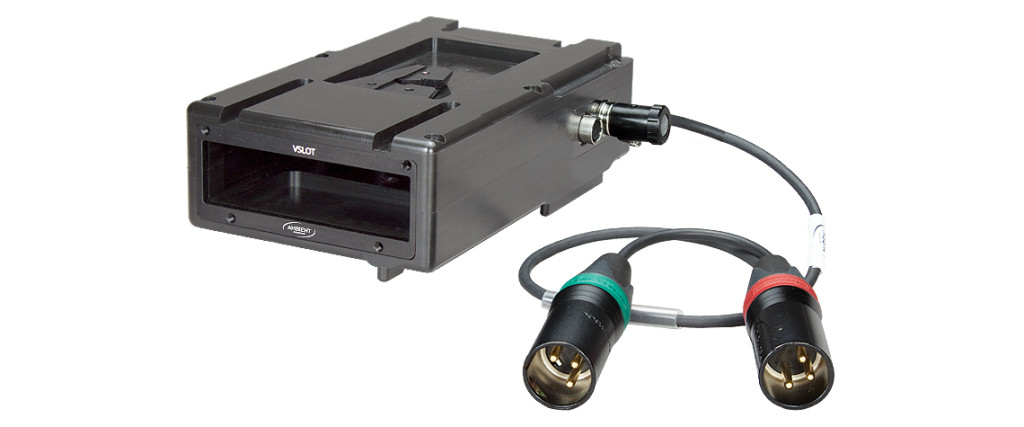

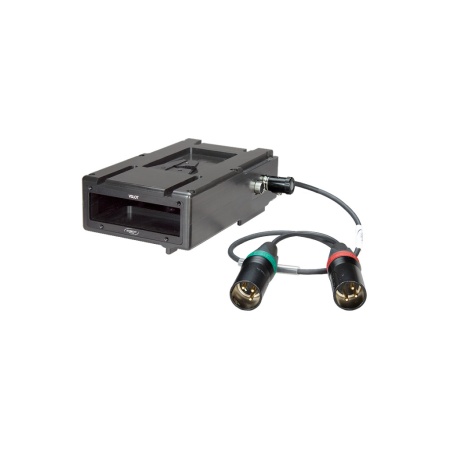

The Slot will be delivered with standard adaptor cable VSL-TA5F90L-2XLR3M.
Tech Specs
| Construction Material |
POM Aluminum |
| Dimensions (W x D x H) |
3.5 x 1.9 x 5.6" (88 x 48 x 141 mm) |
| Weight |
14 oz (400 g) |
