Product Code: 010602
Suitable for small diaphragm condenser microphones from 121mm up to 160mm in length such as the MKH 40/50
Main Benefits:
- Our lightweight, durable windshield baskets are robust enough to withstand the rigours of Broadcast and ENG whatever the weather
- Their modular nature means our windshields can fit a variety of length microphones making them very versatile
- The Windshield is designed to be used with our Modular Suspensions and together provide excellent wind and handling noise reduction
Description

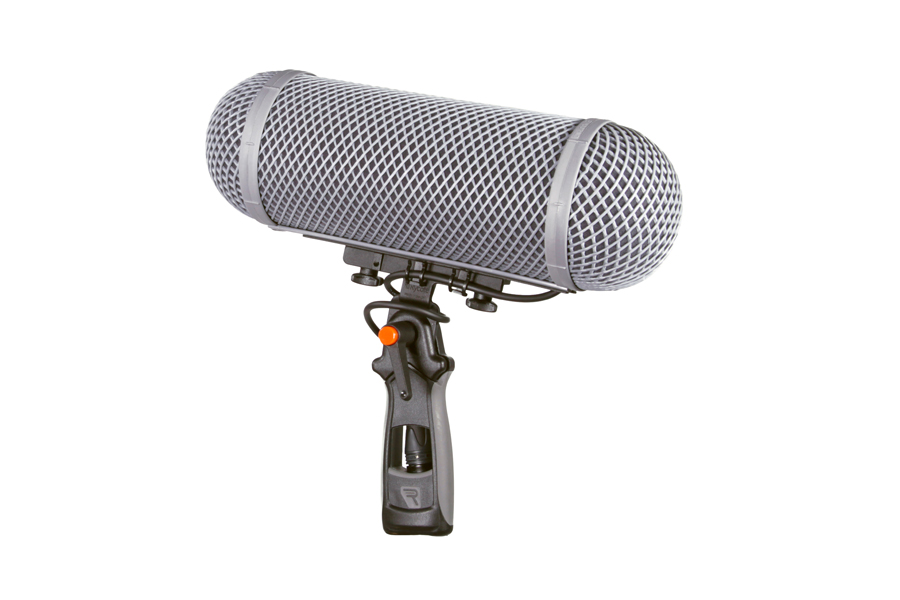

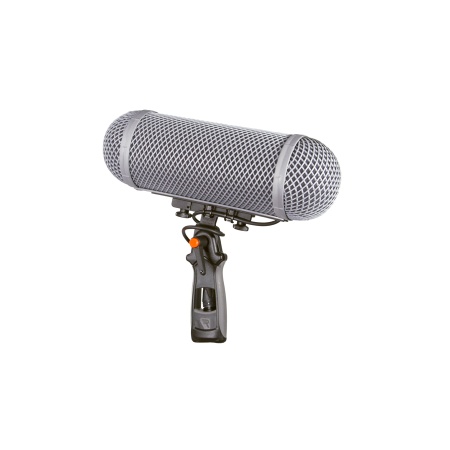

The Modular Windshield is designed to work with the Modular Suspension, and forms an integral part of the Modular Windshield Kit.

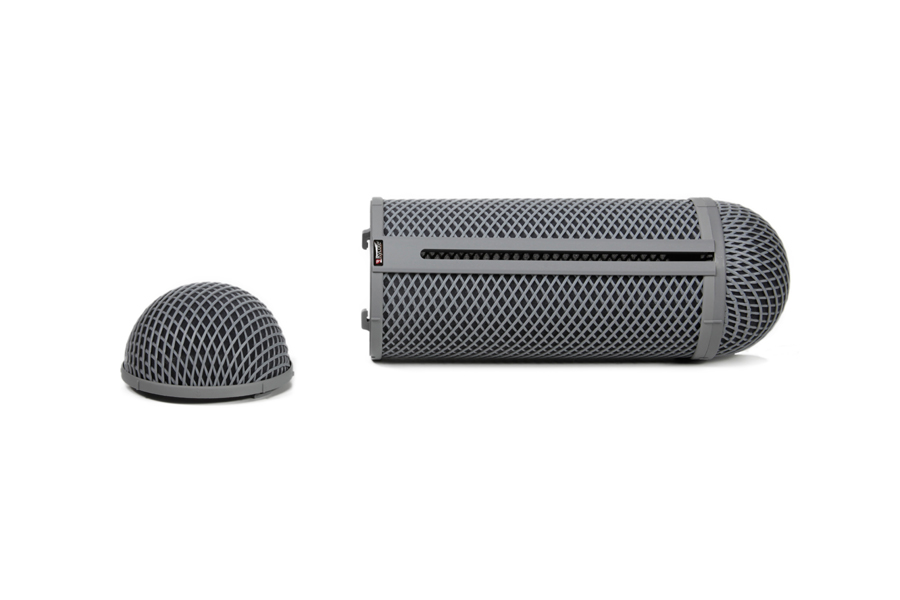

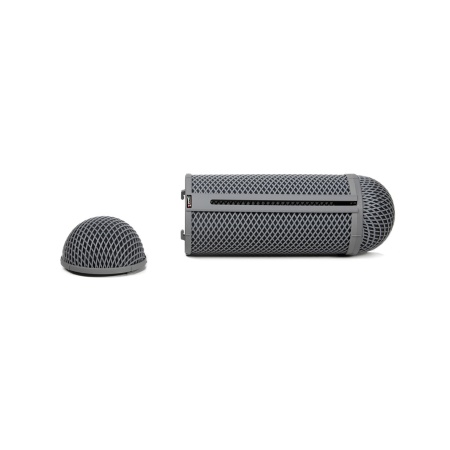

The Windshield is a lightweight, durable basket made from flexible grey plastic netting with a screening material attached. The windshield slides on to the Modular Suspension surrounding the whole microphone, connector and suspension. This system creates a still volume of air around the microphone, which provides excellent wind-noise reduction of up to 30dB, including minimal High-Frequency loss.
A Modular Windshield is comprised of: A Windshield body, two end caps, and in some cases extension pieces. The twist and turn locking end caps provide easy, secure and rattle-free on both ends of the windshield. Both end caps can now be removed, facilitating easier placement of the microphone inside the basket.
The modular nature allows the fitting of extension pieces which extends the length of the windshield so that several microphones can be used by one kit. For example, a Windshield 5 is comprised of a Windshield 4 Body, an Extension 1 and two end caps, if necessary it can be used as a Windshield 4, by removing the extension piece.
To achieve maximum protection of up to 50dB, a Windjammer (fur cover) can be used over the Windshield.
Windshields are available in two types, this page refers to 'Mono' windshields which are designed to hold one microphone, and have a diameter of 100mm. 'Stereo' windshields have a larger diameter of 140mm, which fit stereo suspensions designed to hold two microphones.
Tech Specs
Suitable for microphones from 121mm up to 160mm in length.
Windshield Height: 100mm
Windshield Body Length: 210mm
Total Windshield Length (inc end caps): 320mm
Maximum wind-noise attenuation: 30dB
Compatibility
| AKG CK 1 451 |
The classic cardioid capsule for the CMS range. The pattern was remarkably consistent across the frequency range. The 1S had a rising... |
| AKG CK 1 460 |
A remote cardioid capsule introduced for use with the C 460 B preamplifier. |
| AKG CK 91 SE300 B |
The flat frequency response and uniform polar pattern of the CK 91 make it ideal for general applications where suppression of off-ax... |
| AKG CK 92 SE300 B |
The CK 92 offers exceptionally neutral presentation of a source in its ambient sound field, providing uniform results regardless of t... |
| AKG CK 93 SE300 B |
Similar to the CK 91, the CK 93 provides additional attenuation of 90 degree off-axis sounds. In addition to a higher ratio of direct... |
| Audio-Technica AT 4021 |
Ideal for critical studio and live applications, the low-profile AT4021 offers a flat, extended frequency response, high maximum SPL ... |
| Audio-Technica ATM 33a |
Ideal for acoustic guitar, percussion, overheads, vocals and more, the ATM33a excels in both studio and stage applications. It offers... |
| BeyerDynamic M 160 |
Double ribbon dynamic microphone with unique acoustic characteristics, especially suitable for use when recording digitally. |
| BeyerDynamic M 201 |
A very sensitive dynamic microphone with an integral humbucking transformer to eliminate mains-borne interference when working near c... |
| BeyerDynamic M 88 |
Outstandingly sensitive dynamic microphone that gives superb response characteristics for vocals and high SPL instruments such as kic... |
| BeyerDynamic MC 713 |
For more information on this specific microphone, go to the BeyerDynamic website at http://europe.beyerdynamic.com. |
| BeyerDynamic MC 723 |
For more information on this specific microphone, go to the BeyerDynamic website at http://europe.beyerdynamic.com. |
| DPA 4006 |
The 4006 is phantom powered, which, together with its extended range of acoustic pressure equalisers and different protection grids, ... |
| Sennheiser MKH 20 |
An RF condenser microphone using a symmetrical capsule. It has a transformerless, fully-floating balanced output, switched pre-attenu... |
