Anton Bauer battery mount, 6 x Hirose
The ABPAK Anton Bauer External Power Supply from Ambient Recording is a compact power supply plate that allows you to power up to 5 devices from a single Anton Bauer battery. The plate fits easily into a mixer bag, and provides rigid support. The ABPAK has 4 individual 4-pin Hirose sockets, plus an output cable with a 4-pin Hirose plug connector. This allows you to power a mixer, recorder, and wireless microphones from the same battery. The unit has an internal reversible fuse with a 10A release current.
Main Benefits:
- Compact Design
- Supports Standard Anton Bauer Batteries
- Supports Up to 5 Devices via Hirose
- Internal Fuse
Overview

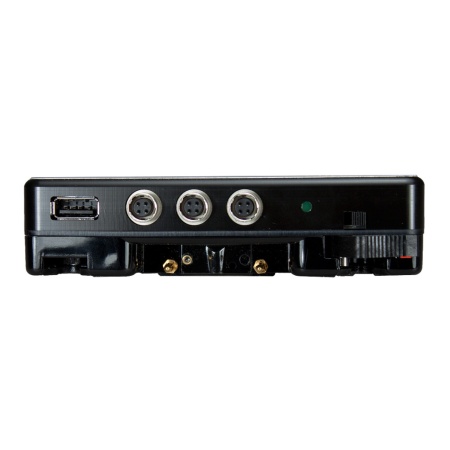

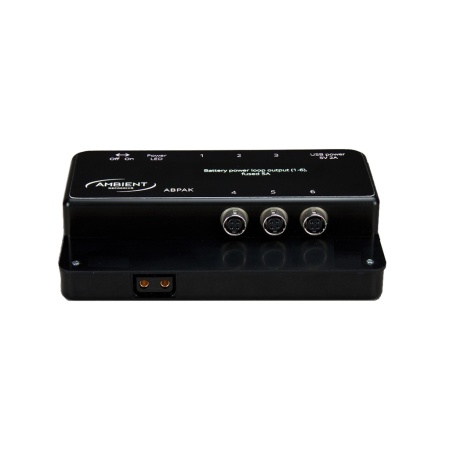

The ABPAK features 6 outlets via Hirose 4-pin (fused 5 A permanent load, 10 A release), a D-Tap outlet, and a USB power output with 2 A load so an iPad can be charged.
A cable with Hirose connector is not included, so you’d need this as an extra accessory (for instance our AK-HS4, also available with right angle connectors as AK-HS4-90 or with one right angle and one straight connector).
Tech Specs
| 6x Hirose 4-pin |
| USB power output |
| D-Tap outlet |
| Weight approx. 185 g |
| Dimensions approx. 30 mm x 77 mm x 120 mm |
