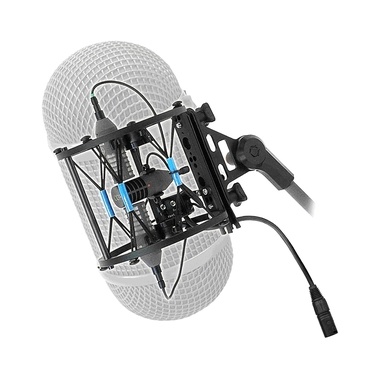

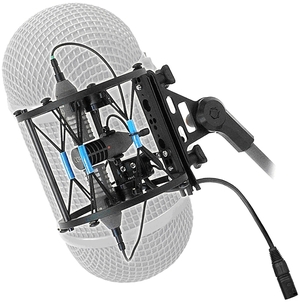

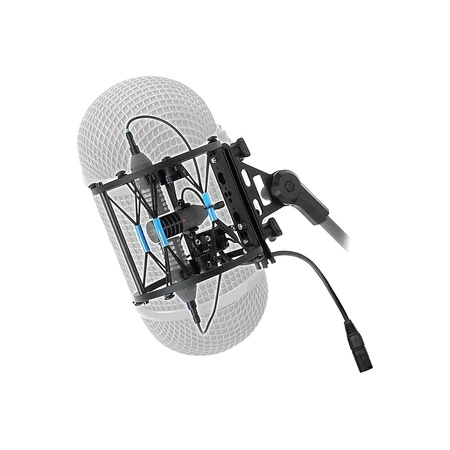

Schoeps WSR DMS LU Basket-type windscreen with Windjammer for Double M/S with 3*CCM, XLR7 Schoeps

Schoeps WSR DMS LU Basket-type windscreen with Windjammer for Double M/S with 3*CCM, XLR7

”Double M/S” is an improved version of the well-known M/S stereo recording technique. In addition to a front-facing cardioid or supercardioid ”mid” microphone and a figure-8 ”side” microphone, a rear-facing directional microphone is set up. The front- and rear-facing microphones share the signal of the figure-8 microphone so as to form two complete, back-to-back M/S systems. One M/S system then provides the three front channels (the center channel signal being provided directly by the mid microphone of the front system), while the other system provides the two surround channels.

• basket-type windscreen with elastic suspension for double M/S
• including Windjammer and cables 3 x Lemo >> XLR7
• without microphones

Overview

An arrangement of this kind allows flexible processing of the stereo surround image width and post-production adjustment for both of the M/S pairs.

The microphones and accessories for Double M/S recording are available in sets.
They contain 2 cardioid and one Fig-8 microphone as well as a full windshield set with cables.

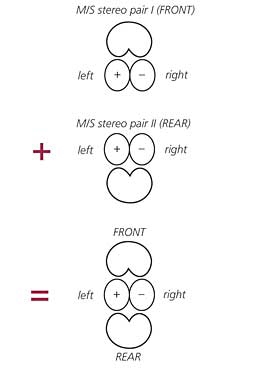

Double M/S viewed from top; for reasons of clarity, not drawn one above the other (coincident).

The SCHOEPS "Double M/S Tool" plug-in enables customized, intuitive decoding of the three signals of the Double M/S system.

Features and Application of the "Double MS Tool" are described here.
